Обсуждение: A question about leakproof
Problem description
After testing, we don't find the difference between functions of proleakproof=true and functions of proleakproof=false (the function is described in pg_proc). Can you give specific examples to show that functions of proleakproof=true are more secure or can prevent data disclosure than functions of proleakproof=false. My related testing process is as follows (the rsp_user and wumk used below are the two database users that have been created).
1. Operation under user rsp_user
1.1 create table
drop table if exists tb_a cascade;
create table tb_a(id int4,c1 int, c2 int, pad text, effective_date timestamp without time zone NOT NULL) ;
CREATE INDEX tb_a_t_idx_id ON tb_a USING btree (id) TABLESPACE pg_default;
CREATE INDEX tb_a_t_idx_ed ON tb_a USING btree (effective_date) TABLESPACE pg_default;
CREATE INDEX tb_a_t_idx_c2 ON tb_a USING btree (c2) TABLESPACE pg_default;
1.2 insert data
insert into tb_a select id, id %200, id%1000, 'ss', current_date - floor((random() * 10000))::int from (select generate_series(1,10000) id) tb_a;
analyze;
1.3 create view
a. condition of view：effective_date > now() - TIME'23:00', in particular, type of effective_date is ‘timestamp without time zone NOT NULL’，but the type of the result of now() - TIME'23:00' is：timestamp with time zone，the related SQL statements are as follows：
drop view if exists tb_a_date_v1;
CREATE VIEW tb_a_date_v1 AS select * from tb_a where effective_date > now() - TIME'23:00';
b. the condition of the view is id=183. Note that type of id field is int4. the relevant SQL statements are as follows：
drop view if exists tb_a_int4_v1;
CREATE VIEW tb_a_int4_v1 AS select * from tb_a where id=183;
1.4 Authorize the view to user wumk
GRANT ALL ON SCHEMA public TO wumk;
GRANT ALL ON table tb_a_date_v1 TO wumk;
GRANT ALL ON table tb_a_int4_v1 TO wumk;
1.5 test SQL

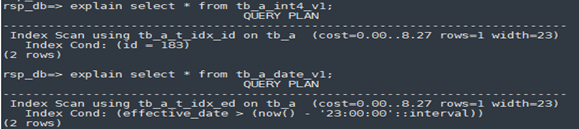

Execute the following SQL statements respectively：explain select * from tb_a_int4_v1; explain select * from tb_a_date_v1。the results are as follows， the plans for both SQL statements are indexscan。
2. Operation under user wumk
1.1. test SQL，looking the plans
Execute the following SQL statements respectively：explain select * from tb_a_int4_v1; explain select * from tb_a_date_v1。The results are as follows：

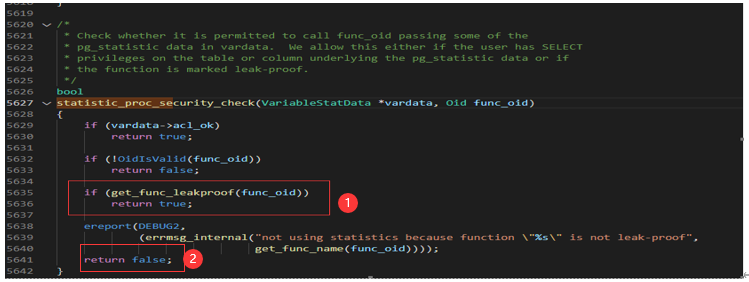

As shown above, the plan of view tb_a_date_ v1 is seqscan (under the user rsp_user, its plan is indexscan)，After analyzing the source code of postgresql, it is found that this problem is related to the following code：

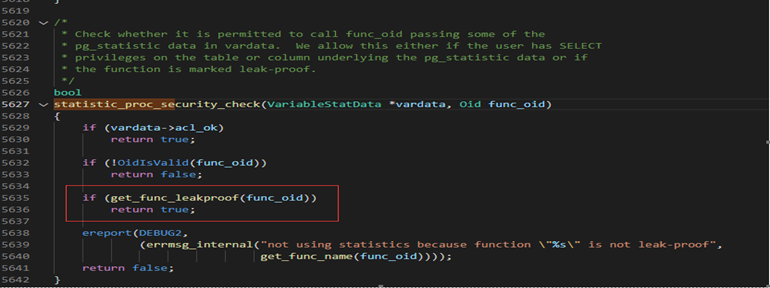

In the above figure, func_oid=2523, the condition (effective_date > now() - TIME'23:00' in view b_a_data_v1 ) will use the function(oid=2523) for calculation, the function name is timestamp_gt_timestamptz，as shown in the figure below：
The proleakproof of the function is false，so，for the selectivity calculation of effective_date > now() - TIME'23:00 don’t use statistical information
，so the selectivity calculation of indexscan is higher than the actual，So finally, seqscan is selected.
While condition id=183 in in view tb_a_int4_v1 uses a comparison function whose proleakproof is true, so tb_a_int4_v1 view will normally use statistics info to calculate the selectivity, so that the correct indexscan is finally selected
So check the official postgresql document about leakproof:
According to my understanding, if the proleakproof is true, the function will not cause data leakage, and if the proleakproof is false, the function may cause data leakage. So I had tested the proleakproof about data leakage in sections 2.2 and 2.3.
1.2. test the data leakage of seqscan
a. Execute the following SQL and the results are as follows：
create or replace function leak_date(timestamp with time zone) returns bool as $$begin raise notice 'abc:%', $1; return true; end$$ language plpgsql cost 0.0000000000000001;
create or replace function leak_int4(int4) returns bool as $$begin raise notice 'abc:%', $1; return true; end$$ language plpgsql cost 0.0000000000000001;
set enable_indexscan=off;
set enable_bitmapscan=off;
select * from tb_a_date_v1 where leak_date(effective_date);
select * from tb_a_int4_v1 where leak_int4(id);

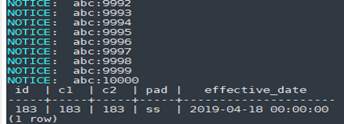

Analysis conclusion：
It is found that whether the proleakproof is true or false, there is a problem of data leakage under the seqscan plan.
1.3. test the data leakage of indexscan
To ensure that the plan must be indexscan, you need to set the following parameters：
set enable_seqscan=off; set enable_indexscan=on; set enable_bitmapscan=on;
Then execute the sqls:
select * from tb_a_date_v1 where leak_date(effective_date);
select * from tb_a_int4_v1 where leak_int4(id);
The results are as follows：
Analysis conclusion：
It is found that whether the proleakproof is true or false, there is no problem of data leakage under the indexscan plan
Вложения
------------------------------------------------------------------发件人：Tom Lane <tgl@sss.pgh.pa.us>发送时间：2022年10月17日(星期一) 11:33收件人：qiumingcheng <qiumingcheng@aliyun.com>抄 送：Julien Rouhaud <rjuju123@gmail.com>; pgsql-general <pgsql-general@lists.postgresql.org>主 题：Re: 回复：A question about leakproof"qiumingcheng" <qiumingcheng@aliyun.com> writes:
> 1. In the test example I gave, the in4eq function's proleakproof=true, but its actual test result is leaking. Does that mean you will adjust it to proleakproof=false later?
int4eq is about as leakproof as a function could possibly be: it does
not leak, it's plain from the code of the function that it does not
leak, and it calls no other code that might accidentally introduce
a leak in future.
I think you do not understand what that property actually means.
Per the CREATE FUNCTION man page:
LEAKPROOF indicates that the function has no side
effects. It reveals no information about its arguments other than by
its return value. For example, a function which throws an error message
for some argument values but not others, or which includes the argument
values in any error message, is not leakproof.
Please note that this definition talks only about the behavior
of the function itself. Re-reading your email, you seem to be
imagining that changes in a query's plan on the basis of changes in
collected statistics have something to do with this. They do not.
regards, tom lane
