Problem description

After testing, we don't find the difference between functions of proleakproof=true and functions of proleakproof=false (the function is described in pg_proc). Can you give specific examples to show that functions of proleakproof=true are more secure or can prevent data disclosure than functions of proleakproof=false. My related testing process is as follows (the rsp_user and wumk used below are the two database users that have been created).

1.   Operation under user rsp_user

1.1   create table

drop table if exists tb_a cascade;

create table tb_a(id int4,c1 int, c2 int, pad text, effective_date timestamp without time zone NOT NULL) ;

CREATE INDEX tb_a_t_idx_id ON tb_a USING btree (id) TABLESPACE pg_default;

CREATE INDEX tb_a_t_idx_ed ON tb_a USING btree (effective_date) TABLESPACE pg_default;

CREATE INDEX tb_a_t_idx_c2 ON tb_a USING btree (c2) TABLESPACE pg_default;

1.2   insert data

insert into tb_a select id, id %200, id%1000, 'ss', current_date - floor((random() * 10000))::int from (select generate_series(1,10000) id) tb_a;

analyze;

1.3   create view

a.         condition of view：effective_date > now() - TIME'23:00', in particular, type of effective_date is ‘timestamp without time zone NOT NULL’，but the type of the result of now() - TIME'23:00' is：timestamp with time zone，the related SQL statements are as follows：

drop view if exists tb_a_date_v1;

CREATE VIEW tb_a_date_v1 AS select * from tb_a where effective_date > now() - TIME'23:00';

b.         the condition of the view is id=183. Note that type of id field is int4. the relevant SQL statements are as follows：

drop view if exists tb_a_int4_v1;

CREATE VIEW tb_a_int4_v1 AS select * from tb_a where id=183;

1.4   Authorize the view to user wumk

GRANT ALL ON SCHEMA public TO wumk;

GRANT ALL ON table tb_a_date_v1 TO wumk;

GRANT ALL ON table tb_a_int4_v1 TO wumk;

1.5   test SQL

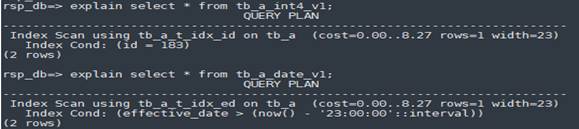

Execute the following SQL statements respectively：explain select * from tb_a_int4_v1;   explain select * from tb_a_date_v1。the results are as follows， the plans for both SQL statements are indexscan。

2.   Operation under user wumk

1.1. test SQL，looking the plans

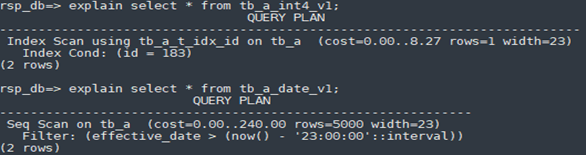

Execute the following SQL statements respectively：explain select * from tb_a_int4_v1;   explain select * from tb_a_date_v1。The results are as follows：

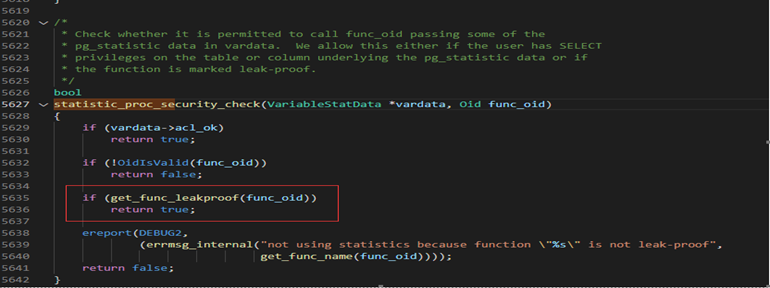

As shown above, the plan of view tb_a_date_ v1 is seqscan (under the user rsp_user, its plan is indexscan)，After analyzing the source code of postgresql, it is found that this problem is related to the following code：

In the above figure, func_oid=2523,  the condition (effective_date > now() - TIME'23:00' in view b_a_data_v1 ) will use the function(oid=2523) for calculation, the function name is timestamp_gt_timestamptz，as shown in the figure below：

The proleakproof of the function is false，so，for the selectivity calculation of effective_date > now() - TIME'23:00 don’t use statistical information

，so the selectivity calculation of indexscan is higher than the actual，So finally, seqscan is selected.

While condition id=183 in in view tb_a_int4_v1 uses a comparison function whose proleakproof is true, so tb_a_int4_v1 view will normally use statistics info to calculate the selectivity, so that the correct indexscan is finally selected

So check the official postgresql document about leakproof:

According to my understanding, if the proleakproof is true, the function will not cause data leakage, and if the proleakproof is false, the function may cause data leakage. So I had tested the proleakproof about data leakage in sections 2.2 and 2.3.

1.2. test the data leakage of seqscan

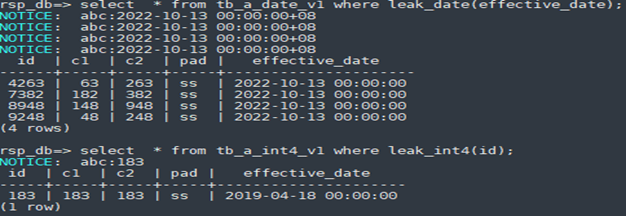

a.         Execute the following SQL and the results are as follows：

create or replace function leak_date(timestamp with time zone) returns bool as $$begin raise notice 'abc:%', $1; return true; end$$ language plpgsql cost 0.0000000000000001;

  create or replace function leak_int4(int4) returns bool as $$begin raise notice 'abc:%', $1; return true; end$$ language plpgsql cost 0.0000000000000001;

set enable_indexscan=off;

set enable_bitmapscan=off;

select  * from tb_a_date_v1 where leak_date(effective_date);

select  * from tb_a_int4_v1 where leak_int4(id);

Analysis conclusion：

It is found that whether the proleakproof is true or false, there is a problem of data leakage under the seqscan plan.

1.3. test the data leakage of indexscan

To ensure that the plan must be indexscan, you need to set the following parameters：

set enable_seqscan=off;  set enable_indexscan=on;  set enable_bitmapscan=on;

Then execute the sqls:

select  * from tb_a_date_v1 where leak_date(effective_date);

select  * from tb_a_int4_v1 where leak_int4(id);

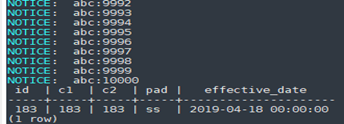

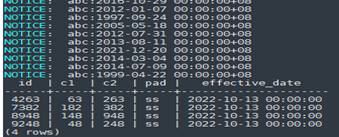

The results are as follows：

Analysis conclusion：

It is found that whether the proleakproof is true or false, there is no problem of data leakage under the indexscan plan
