Re: what to revert

Hi,

I've repeated the tests with the read-only workload, with the number of
runs for each combination increased to 20 (so 4x higher compared to the
initial runs). Also, this time I've collected sar statistics so that
there's a chance of investigating the sudden tps drops observed in some
of the cases. All the tests were on 8ee29a19, i.e. the commit that
stamped 9.6beta1.

Attached is an ODS spreadsheet with the basic data, the full logs are
available in the same google drive folder as before (old_snapshot2.tgz):

     https://drive.google.com/open?id=0BzigUP2Fn0XbR1dyOFA3dUxRaUU

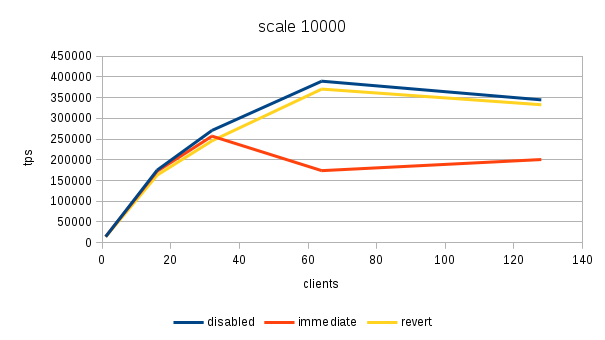

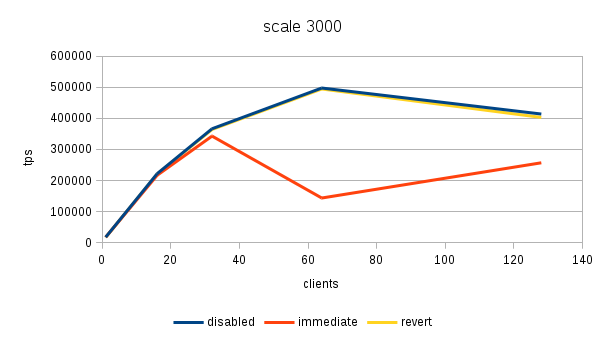

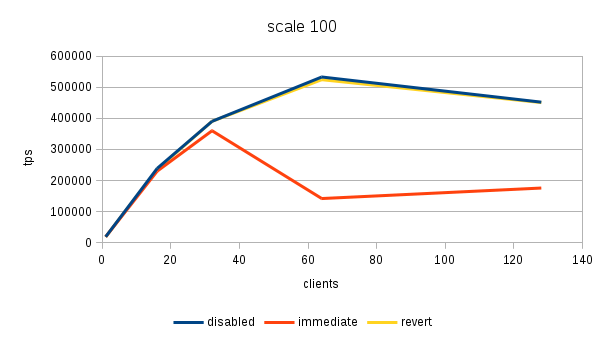

The results (average tps) for the three scales (100, 3000 and 100000)
look like this (also see the three charts attached):

      scale    dataset        1        16        32        64       128
     -------------------------------------------------------------------
        100   disabled    18810    238813    390341    532965    452003
        100  immediate    18792    229819    360048    141869    175624
        100     revert    18458    235814    390306    524320    450595

      scale    dataset        1        16        32        64       128
     -------------------------------------------------------------------
       3000   disabled    17266    221723    366303    497338    413649
       3000  immediate    17277    216554    342688    143374    256825
       3000     revert    16893    220532    363965    494249    402798

      scale    dataset        1        16        32        64       128
     -------------------------------------------------------------------
      10000   disabled    14383    174992    270889    389629    344499
      10000  immediate    14548    172316    257042    173671    200582
      10000     revert    14109    162818    245688    370565    332799

And as a percentage vs. the "revert" case:

      scale    dataset        1       16       32       64      128
     ---------------------------------------------------------------
        100   disabled  101.91%  101.27%  100.01%  101.65%  100.31%
        100  immediate  101.81%   97.46%   92.25%   27.06%   38.98%

      scale    dataset        1       16       32       64      128
     ---------------------------------------------------------------
       3000   disabled  102.21%  100.54%  100.64%  100.62%  102.69%
       3000  immediate  102.27%   98.20%   94.15%   29.01%   63.76%

      scale    dataset        1       16       32       64      128
     ---------------------------------------------------------------
      10000   disabled  101.94%  107.48%  110.26%  105.14%  103.52%
      10000  immediate  103.11%  105.83%  104.62%   46.87%   60.27%

I do agree Noah is right that the small (~1-2%) differences may be
simply due to binary layout changes - I haven't taken any steps to
mitigate the influence of that.

The larger differences are however unlikely to be caused by this, I
guess. I mean, the significant performance drop with "immediate" config
and higher client counts is still there, and it's quite massive.

The strange speedup with the feature "disabled" (which gains up to ~10%
compared to the "revert" case with 32 clients) is also still there. I
find that a bit strange, not sure what's the cause here.

Overall, I think this shows that there seems to be no performance
penalty with "disabled" vs. "reverted" - i.e. even with the least
favorable (100% read-only) workload.

Let's see the impact of the patch on variability of results. First, the
(MAX-MIN)/MAX metric:

      scale     dataset        1       16      32      64       128
     ---------------------------------------------------------------
        100    disabled    9.55%    3.18%   2.84%    4.16%    9.61%
              immediate    4.92%   10.96%   4.39%    3.32%   58.95%
                 revert    4.43%    3.61%   3.01%   13.93%   10.25%

      scale     dataset        1       16      32      64       128
     ---------------------------------------------------------------
       3000    disabled   13.29%    4.19%   4.52%    9.06%   23.59%
              immediate    7.86%    5.93%   3.15%    7.64%   50.41%
                 revert   12.34%    7.50%   3.99%   10.17%   16.95%

      scale     dataset        1       16      32      64       128
     ---------------------------------------------------------------
      10000    disabled    9.19%   17.21%   8.85%    8.01%   26.40%
              immediate    7.74%    8.29%   8.53%   38.64%   46.09%
                 revert    4.42%    4.98%   6.58%   12.42%   18.68%

or as a STDDEV/AVERAGE:

      scale     dataset        1       16      32      64       128
     ---------------------------------------------------------------
        100    disabled    2.34%    0.74%   1.00%   1.20%     2.65%
              immediate    1.51%    2.65%   1.11%   0.69%    34.35%
                 revert    1.47%    0.94%   0.78%   3.22%     2.73%

      scale     dataset        1       16      32      64       128
     ---------------------------------------------------------------
       3000    disabled    2.93%    1.19%   1.06%    2.04%    6.99%
              immediate    2.31%    1.34%   0.88%    1.72%   18.15%
                 revert    2.81%    1.51%   0.96%    2.64%    4.85%

      scale     dataset        1       16      32      64       128
     ---------------------------------------------------------------
      10000    disabled    3.56%    4.51%   2.62%    1.73%    7.56%
              immediate    2.53%    2.36%   2.82%   15.61%   18.20%
                 revert    1.41%    1.45%   1.69%    3.16%    6.39%

Whatever the metric is, I think it's fairly clear the patch makes the
results way more volatile - particularly with the "immediate" case and
higher client counts.

I'm not sure whether that's problem with NUMA or one of the bugs in the
kernel scheduler. But even if it is, we should not ignore that as it
will take a long time before most users migrate to fixed kernels.

AFAIK the system is not using autogroups, and I've rebooted it before
repeating the tests  to make sure none of the cores were turned off
(e.g. during some experiments with hyper-threading or something). That
should eliminate the related scheduling bugs.

The end of the "numactl --hardware" output looks like this:

node distances:
node   0   1   2   3
   0:  10  21  30  21
   1:  21  10  21  30
   2:  30  21  10  21
   3:  21  30  21  10

Which I think means that there may be up to two hops, making the system
vulnerable to the "Scheduling Group Construction" bug. But it seems a
bit strange that it would only affect one of the cases ("immediate").

What I plan to do next, over the next week:

1) Wait for the second run of "immediate" to complete (should happen in
a few hours)

2) Do tests with other workloads (mostly read-only, read-write).


regards

--
Tomas Vondra                  http://www.2ndQuadrant.com
PostgreSQL Development, 24x7 Support, Remote DBA, Training & Services
