Problem with performance using query with unnest after migrating from V9.1 to V9.2 and higher
Hi,
I have a problem with the performance of some queries using unnest after migrating from V9.1.12 to V9.5.3. It doesn’t depend on if I am using pg_upgrade or pg_dumpall for migration.
I tried different versions of PostgreSQL. The problem starts with V9.2.
The databases V9.1.12 and V9.5.3 are on the same virtual machine with Microsoft Windows 2012 R2, 16 GB Ram and 1 Intel Xeon CPU E7-4820 2,00 GHz and they are using the same postgresql.conf.
The server configuration changes are:
"archive_command" "copy ""%p"" ""E:/9.5/archive/%f"""
"archive_mode" "on"
"autovacuum" "off"
"autovacuum_analyze_threshold" "250"
"autovacuum_naptime" "1min"
"autovacuum_vacuum_threshold" "1000"
"default_text_search_config" "pg_catalog.simple"
"default_with_oids" "on"
"dynamic_shared_memory_type" "windows"
"effective_cache_size" "4000MB"
"lc_messages" "German, Germany"
"lc_monetary" "German, Germany"
"lc_numeric" "German, Germany"
"lc_time" "German, Germany"
"listen_addresses" "*"
"log_autovacuum_min_duration" "0"
"log_connections" "on"
"log_destination" "stderr"
"log_directory" "E:/9.5/log"
"log_disconnections" "on"
"log_line_prefix" "%t %u %r %d "
"log_min_duration_statement" "-1"
"log_min_error_statement" "debug5"
"log_statement" "mod"
"log_temp_files" "20MB"
"log_truncate_on_rotation" "on"
"logging_collector" "on"
"maintenance_work_mem" "256MB"
"max_connections" "200"
"max_stack_depth" "2MB"
"port" "5432"
"shared_buffers" "4000MB"
"wal_buffers" "2MB"
"wal_level" "archive"
"work_mem" "20MB"
I created the following test-schema and test-table on both databases:
create schema schema_test AUTHORIZATION postgres;
CREATE TABLE schema_test.table_a
(
col0001 character varying(10) NOT NULL, -- customer number
col0002 character varying(5) NOT NULL, -- account number
col0003 date NOT NULL, -- booking period
col0004 smallint NOT NULL DEFAULT 0, -- cost center
col0005 numeric(12,2) NOT NULL DEFAULT 0, -- value01
col0006 numeric(12,2) NOT NULL DEFAULT 0, -- value02
CONSTRAINT table_a_pk PRIMARY KEY (col0001, col0002, col0003, col0004),
CONSTRAINT table_a_chk01 CHECK (col0002::text ~ '^[[:digit:]]{0,5}$'::text)
)
WITH (
OIDS=TRUE
);
ALTER TABLE schema_test.table_a OWNER TO postgres;
GRANT ALL ON TABLE schema_test.table_a TO PUBLIC;
Then I imported 50 datas:
5010010000 01351 2000-01-01 0 1568.13 0.00
5010010000 01351 2000-12-01 0 -1568.13 0.00
7810405800 01491 2005-12-01 0 1347.00 0.00
7810405801 05720 2005-12-01 0 148.92 0.00
5010010000 01496 2000-01-01 0 -3196.90 -142834.53
5010010000 01496 2000-02-01 0 -1628.77 0.00
5010010000 01496 2000-03-01 0 -1628.77 0.00
5010010000 01496 2000-04-01 0 -1628.77 0.00
5010010000 01496 2000-05-01 0 -1628.77 0.00
5010010000 01496 2000-06-01 0 -1628.77 0.00
5010010000 01496 2000-07-01 0 -1628.77 0.00
5010010000 01496 2000-08-01 0 -1628.77 0.00
5010010000 01496 2000-09-01 0 -1628.77 0.00
5010010000 01496 2000-10-01 0 -1628.77 0.00
5010010000 01496 2000-11-01 0 -1628.77 0.00
7810405800 01490 2005-12-01 0 1533.20 0.00
5010010000 01496 2000-12-01 0 -60.64 0.00
7810405801 05600 2005-12-01 0 74.82 0.00
5010010000 02009 2000-01-01 0 11808.59 0.00
7810405801 01101 2005-12-01 0 12700.00 0.00
7810405801 01225 2005-12-01 0 -5898.23 0.00
5010010000 02009 2000-02-01 0 11808.59 0.00
7810405801 05958 2005-12-01 0 76.25 0.00
5010010000 02009 2000-03-01 0 11808.59 0.00
7810405802 04502 2005-12-01 0 144.89 0.00
7810405802 04320 2005-12-01 0 22.48 0.00
5010010000 02009 2000-04-01 0 11808.59 0.00
3030112600 01201 2006-02-01 0 -29.88 0.00
5010010000 02009 2000-05-01 0 11808.59 0.00
7810405802 01001 2005-12-01 0 2416.24 0.00
7810405802 09295 2005-12-01 0 -5219.00 0.00
5010010000 02009 2000-06-01 0 11808.59 0.00
7810405802 05216 2005-12-01 0 719.86 0.00
7810405802 08823 2005-12-01 0 -14318.85 0.00
5010010000 02009 2000-07-01 0 11808.59 0.00
7810405802 09800 2005-12-01 0 -51.29 0.00
3030112600 09000 2006-02-01 0 -29550.83 0.00
5010010000 02009 2000-08-01 0 11808.59 0.00
7810405801 04500 2005-12-01 0 175.00 0.00
3030112600 04100 2006-02-01 0 1839.19 0.00
5010010000 02009 2000-09-01 0 11808.59 0.00
7810405801 05890 2005-12-01 0 1200.00 0.00
3030112600 05958 2006-02-01 0 24.56 0.00
5010010000 02009 2000-10-01 0 11808.59 0.00
7810405802 04802 2005-12-01 0 1347.18 0.00
7810405801 04800 2005-12-01 0 354.51 0.00
5010010000 02009 2000-11-01 0 11808.59 0.00
7810405801 04400 2005-12-01 0 47.97 0.00
7810405801 04510 2005-12-01 0 326.80 0.00
5010010000 02009 2000-12-01 0 11808.59 0.00
The query with the problem:
select col0002
from schema_test.table_a
where col0001 in (select unnest(string_to_array('5010010000',',')))
group by 1
order by 1
V9.1: 16 msec
V9.5: 31 msec
In the original table we have 15 million rows.
V9.1: 47 msec
V9.5: 6,2 sec
Explain Analyze:

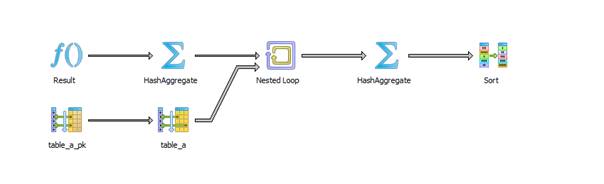

V9.1:

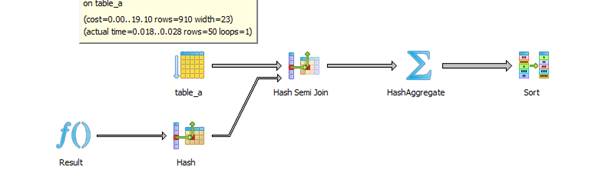

V9.5:
Query plan:

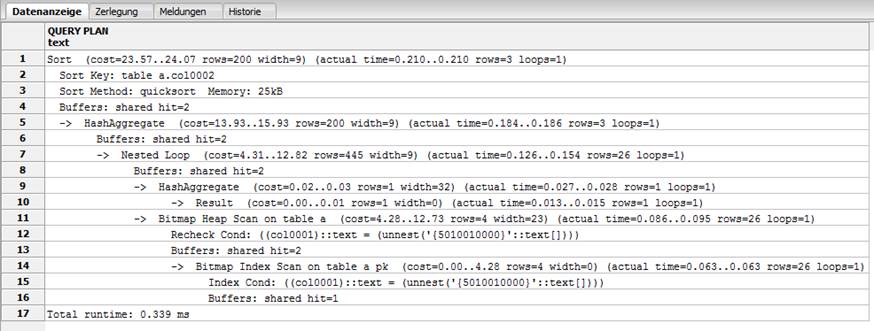

V9.1:
"Sort (cost=23.57..24.07 rows=200 width=9) (actual time=0.210..0.210 rows=3 loops=1)"
" Sort Key: table_a.col0002"
" Sort Method: quicksort Memory: 25kB"
" Buffers: shared hit=2"
" -> HashAggregate (cost=13.93..15.93 rows=200 width=9) (actual time=0.184..0.186 rows=3 loops=1)"
" Buffers: shared hit=2"
" -> Nested Loop (cost=4.31..12.82 rows=445 width=9) (actual time=0.126..0.154 rows=26 loops=1)"
" Buffers: shared hit=2"
" -> HashAggregate (cost=0.02..0.03 rows=1 width=32) (actual time=0.027..0.028 rows=1 loops=1)"
" -> Result (cost=0.00..0.01 rows=1 width=0) (actual time=0.013..0.015 rows=1 loops=1)"
" -> Bitmap Heap Scan on table_a (cost=4.28..12.73 rows=4 width=23) (actual time=0.086..0.095 rows=26 loops=1)"
" Recheck Cond: ((col0001)::text = (unnest('{5010010000}'::text[])))"
" Buffers: shared hit=2"
" -> Bitmap Index Scan on table_a_pk (cost=0.00..4.28 rows=4 width=0) (actual time=0.063..0.063 rows=26 loops=1)"
" Index Cond: ((col0001)::text = (unnest('{5010010000}'::text[])))"
" Buffers: shared hit=1"
"Total runtime: 0.339 ms"
https://explain.depesz.com/s/sdN

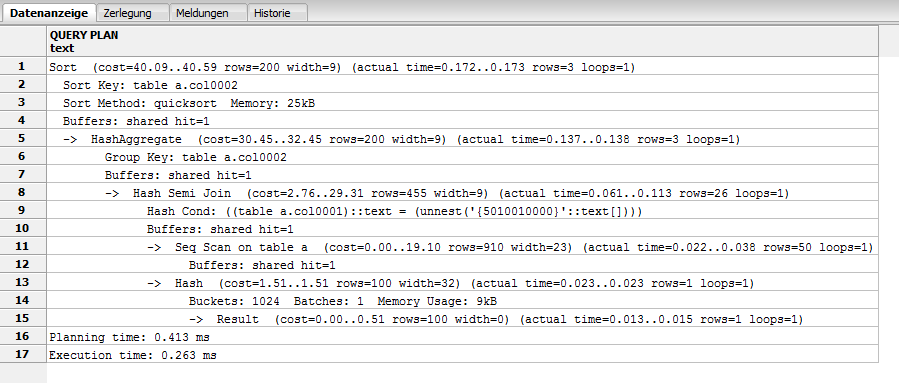

V9.5:
"Sort (cost=40.09..40.59 rows=200 width=9) (actual time=0.172..0.173 rows=3 loops=1)"
" Sort Key: table_a.col0002"
" Sort Method: quicksort Memory: 25kB"
" Buffers: shared hit=1"
" -> HashAggregate (cost=30.45..32.45 rows=200 width=9) (actual time=0.137..0.138 rows=3 loops=1)"
" Group Key: table_a.col0002"
" Buffers: shared hit=1"
" -> Hash Semi Join (cost=2.76..29.31 rows=455 width=9) (actual time=0.061..0.113 rows=26 loops=1)"
" Hash Cond: ((table_a.col0001)::text = (unnest('{5010010000}'::text[])))"
" Buffers: shared hit=1"
" -> Seq Scan on table_a (cost=0.00..19.10 rows=910 width=23) (actual time=0.022..0.038 rows=50 loops=1)"
" Buffers: shared hit=1"
" -> Hash (cost=1.51..1.51 rows=100 width=32) (actual time=0.023..0.023 rows=1 loops=1)"
" Buckets: 1024 Batches: 1 Memory Usage: 9kB"
" -> Result (cost=0.00..0.51 rows=100 width=0) (actual time=0.013..0.015 rows=1 loops=1)"
"Planning time: 0.413 ms"
"Execution time: 0.263 ms"
https://explain.depesz.com/s/JUYr
The difference is that V9.1 uses Nested Loop and the index table_a_pk. V9.2 and higher don’t use the index.
What is the reason? Is there a parameter we can change?
Thanks for your help.
