Major pgbench synthetic SELECT workload regression, Ubuntu 23.04+PG15

Pushing SELECT statements at socket speeds with prepared statements is a synthetic benchmark that normally demos big pgbench numbers.  My benchmark farm moved to Ubuntu 23.04/kernel 6.2.0-20 last month, and that test is badly broken on the system PG15 at larger core counts, with as much as an 85% drop from expectations.  Since this is really just a benchmark workload the user impact is very narrow, probably zero really, but as the severity of the problem is high we should get to the bottom of what's going on.

First round of profile data suggests the lost throughput is going here:
Overhead  Shared Object          Symbol
  74.34%  [kernel]               [k] osq_lock
   2.26%  [kernel]               [k] mutex_spin_on_owner

While I'd like to just say this is a Linux issue and that's early adopter life with non-LTS Ubuntu releases, that doesn't explain why a PGDG PG14 works perfectly on the same systems?

Quick test to find if you're impacted:  on the server and using sockets, run a 10 second SELECT test with/without preparation using 1 or 2 clients/[core|thread] and see if preparation is the slower result.  Here's a PGDG PG14 on port 5434 as a baseline, next to Ubuntu 23.04's regular PG15, all using the PG15 pgbench on AMD 5950X:

$ pgbench -i -s 100 pgbench -p 5434
$ pgbench -S -T 10 -c 32 -j 32 -M prepared -p 5434 pgbench
pgbench (14.8 (Ubuntu 14.8-1.pgdg23.04+1))
tps = 1058195.197298 (without initial connection time)
$ pgbench -S -T 10 -c 32 -j 32 -p 5434 pgbench
pgbench (14.8 (Ubuntu 14.8-1.pgdg23.04+1))
tps = 553120.142503 (without initial connection time)

pgbench (15.3 (Ubuntu 15.3-0ubuntu0.23.04.1))
tps = 170952.097609 (without initial connection time)
$ pgbench -S -T 10 -c 32 -j 32 pgbench
pgbench (15.3 (Ubuntu 15.3-0ubuntu0.23.04.1))
tps = 314585.347022 (without initial connection time)

Connecting over sockets with preparation is usually a cheat code that lets newer/bigger processors clear a million TPS like I did here.  I don't think that reflects any real use case given the unpopularity of preparation in ORMs, plus needing a local sockets connection to reach top rates.

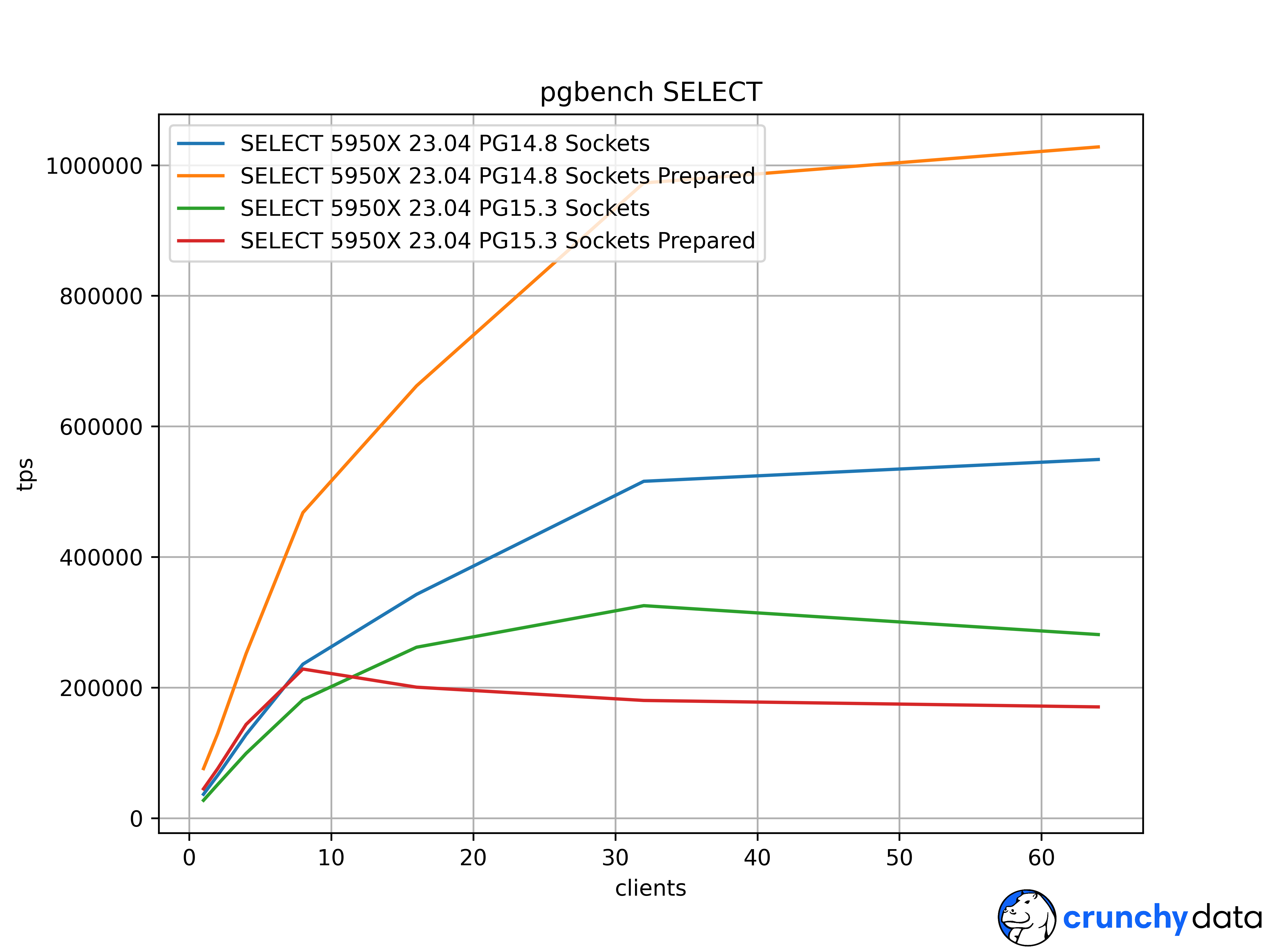

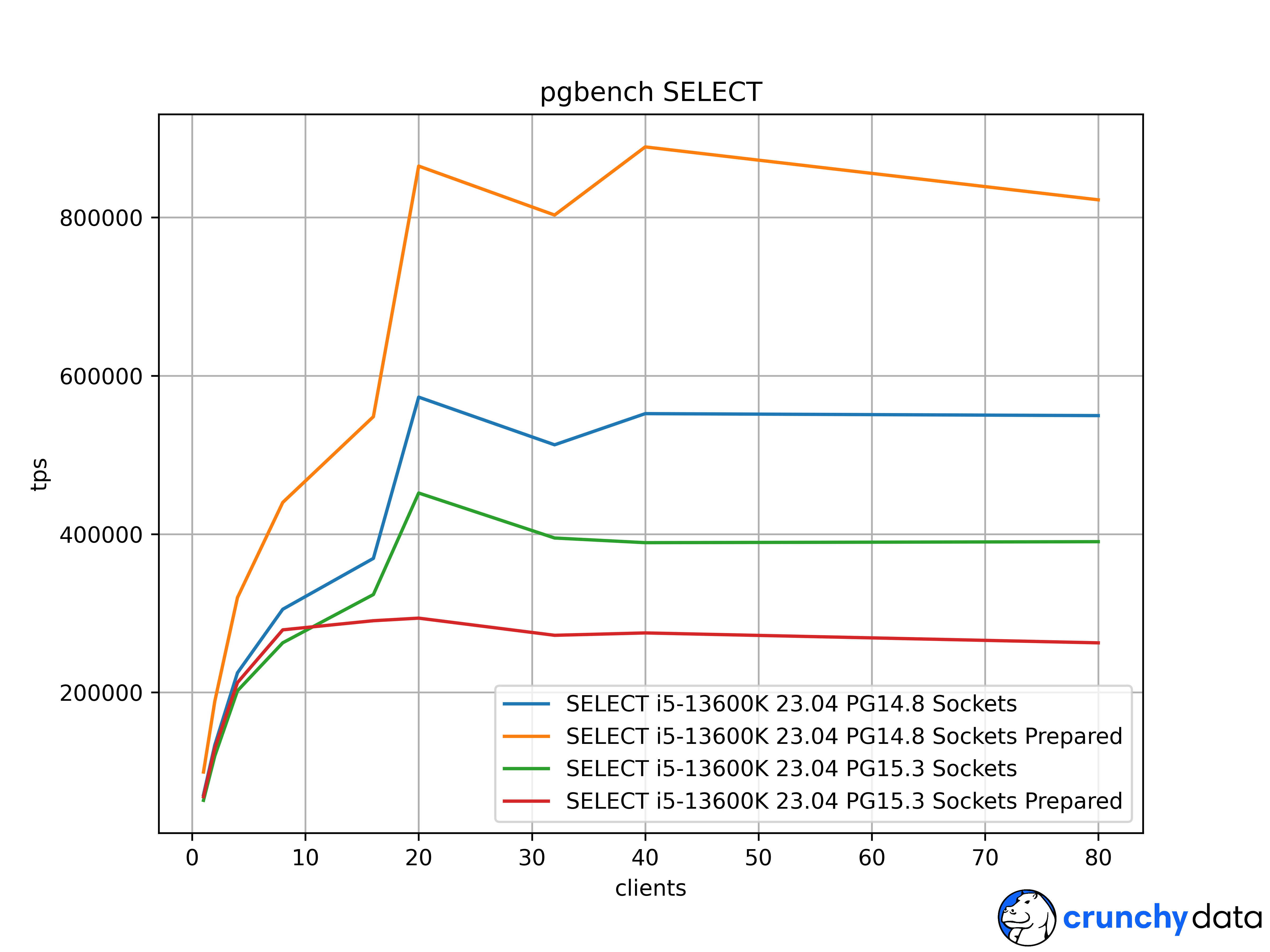

Attached are full scaling graphs for all 4 combinations on this AMD 32 thread 5950X, and an Intel i5-13600K with 20 threads and similar impact.  The regular, unprepared sockets peak speeds took a solid hit in PG15 from this issue too.  I could use some confirmation of where this happens from other tester's hardware and Linux kernels.

$ pgbench -S -T 10 -c 32 -j 32 -M prepared pgbench
pgbench (15.3 (Ubuntu 15.3-0ubuntu0.23.04.1))
tps = 170952.097609 (without initial connection time)
Overhead  Shared Object          Symbol
  74.34%  [kernel]               [k] osq_lock
   2.26%  [kernel]               [k] mutex_spin_on_owner
   0.40%  postgres               [.] _bt_compare
   0.27%  libc.so.6              [.] __dcigettext
   0.24%  postgres               [.] PostgresMain

$ pgbench -S -T 10 -c 32 -j 32 pgbench
pgbench (15.3 (Ubuntu 15.3-0ubuntu0.23.04.1))
tps = 314585.347022 (without initial connection time)
  36.24%  [kernel]                        [k] osq_lock
   2.73%  [kernel]                        [k] mutex_spin_on_owner
   1.41%  postgres                        [.] base_yyparse
   0.73%  postgres                        [.] _bt_compare
   0.70%  postgres                        [.] hash_search_with_hash_value
   0.62%  postgres                        [.] core_yylex
There's been plenty of recent chatter on LKML about osq_lock, in January Intel reported a 20% benchmark regression on UnixBench that might be related.  Work is still ongoing this week:

https://lore.kernel.org/linux-mm/202301301057.e55dad5b-oliver.sang@intel.com/
https://lkml.org/lkml/2023/6/6/706
--
Greg Smith  greg.smith@crunchydata.com
Director of Open Source Strategy
