Re: [pgAdmin4][patch]: Feature #1407 - Support map view for PostGIS query result sets

Hi Dave and Khushboo,

Thank you very much for the suggestions and instructions. I will do that and send the new patch soon.

Khushboo Vashi <khushboo.vashi@enterprisedb.com> 于2018年8月10日周五 下午1:15写道：

Hi Xuri,

On Thu, Aug 9, 2018 at 3:52 PM, Dave Page <dpage@pgadmin.org> wrote:

Hi

On Wed, Aug 8, 2018 at 5:32 PM, Xuri Gong <xurigoong@gmail.com> wrote:

Hi Dave

Thanks for your feedback!

1) The column headers should be resized to take into account the button size. It looks a little weird when they obscure the text.

I will resize the column and update the code style.

Thanks.



2) It would be good to be able to select a subset of rows. The grid already supports this... I'd suggest that the header button should display only the row(s) that are currently selected. That would also allow the removal of the per-row buttons.

Thanks for your nice idea! This can be implemented without much change in the current code. I am wondering if it is intuitive enough for users to firstly select row(s) and then click the column header button. What do you think?

I think it will be. It's exactly how other operations work (e.g. Copy). They affect the whole grid, unless a subset is selected in which case they only affect that subset.



3) Can the panel be made into a regular dialogue, with a close button and ability to resize and move it?

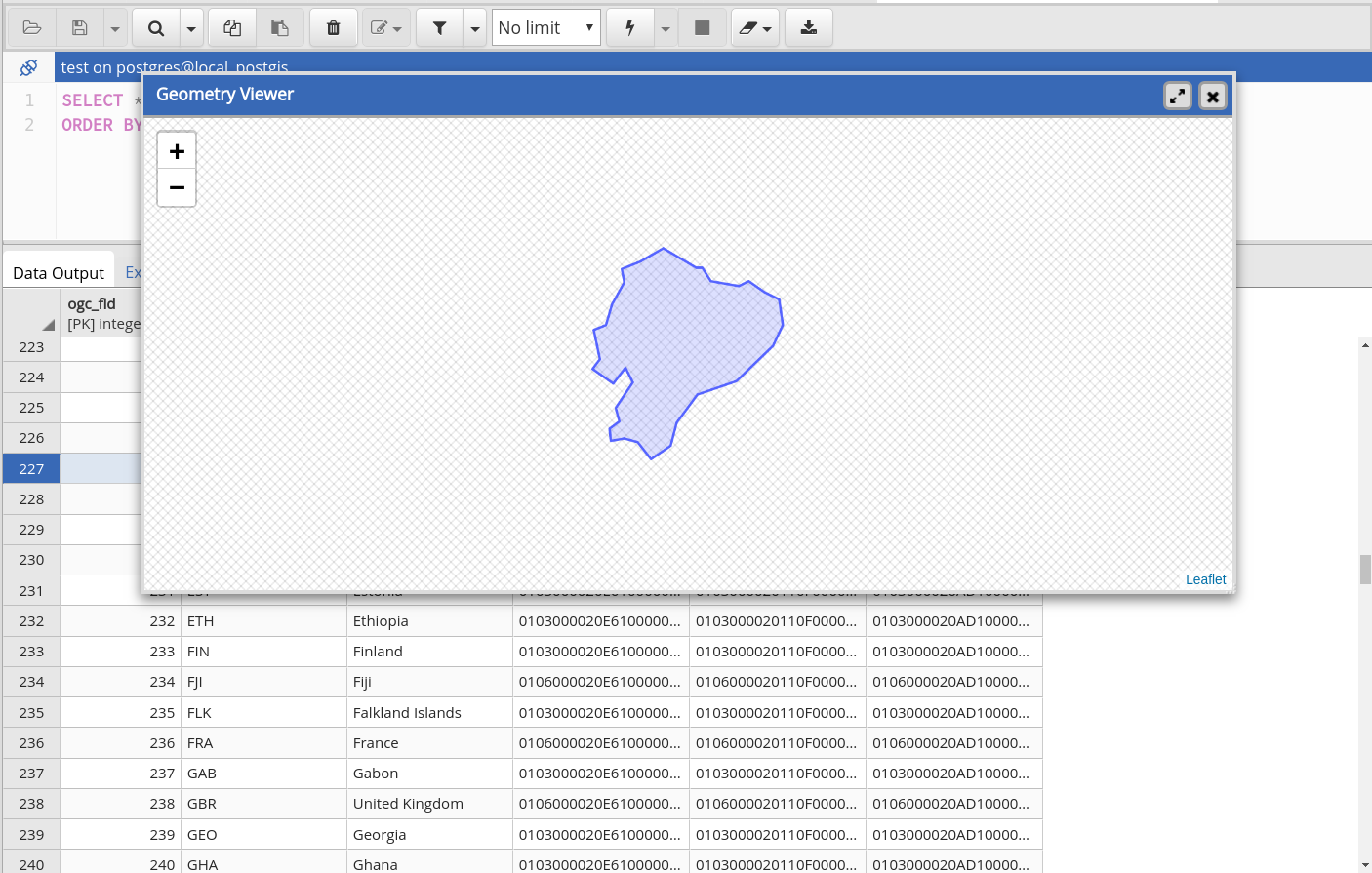

Now the viewer can be resized by dragging the bottom right corner and it can't be moved. I tried adding frame but found it look not good(see the attached screenshot).

Hmm. I think that is an improvement, but it needs to lose the status/button bar at the bottom and render the map over the entire canvas except the title bar. Oh, and of course, making it movable is important so users can resize and move it so they can see other things underneath it.

Khushboo/Aditya - you've worked with the dialogues much more recently than I; can you give Xuri some pointers on how to do the above?

To make the Alertify dialogue movable you can set movable to true in the options of the setup function of Alertify.

For changing the footer, you can use this.elements.footer in the build function which will give you the footer div. So you can apply the css to hide it.

To change the size of the dialogue, resizeTo function is available. So instead of writing elements.dialogue.style.height / weight, you can use this function also.

Whenever we introduce a new JS library, we maintain the list in libraries.txt file. So you need to add the 'wkx' library to this file.

Please let me know if you have any doubts.

Thanks,

Khushboo

Thanks!



Dave Page <dpage@pgadmin.org> 于2018年8月7日周二 下午11:41写道：

Hi

On Sat, Aug 4, 2018 at 1:27 PM, Xuri Gong <xurigoong@gmail.com> wrote:

Hi,

I have added documents for geometry viewer. Please review this newer patch.

For test you can install PostGIS and import this database[1].

Thank you!

[1] https://drive.google.com/open?id=1NHWW4WPli7kxpuGaDFGVFLDXdc2D20wp

I finally got a chance to play with this! It's pretty awesome - I think some tweaks are needed to polish it off though:

1) The column headers should be resized to take into account the button size. It looks a little weird when they obscure the text.

2) It would be good to be able to select a subset of rows. The grid already supports this... I'd suggest that the header button should display only the row(s) that are currently selected. That would also allow the removal of the per-row buttons.

3) Can the panel be made into a regular dialogue, with a close button and ability to resize and move it?

I haven't looked at the code in any great depth due to time constraints, but I didn't see anything particularly untoward except some of the formatting; for example:

if(command === 'view-all-geometries'){
...
  }else{

Should look more like:

if (command === 'view-all-geometries') {
...
  } else {

Thanks - that's good work!



Xuri Gong <xurigoong@gmail.com> 于2018年7月31日周二 下午4:47写道：

Hi,

This is the patch for viewing geometry data in pgAdmin4. I have implemented it as follows:

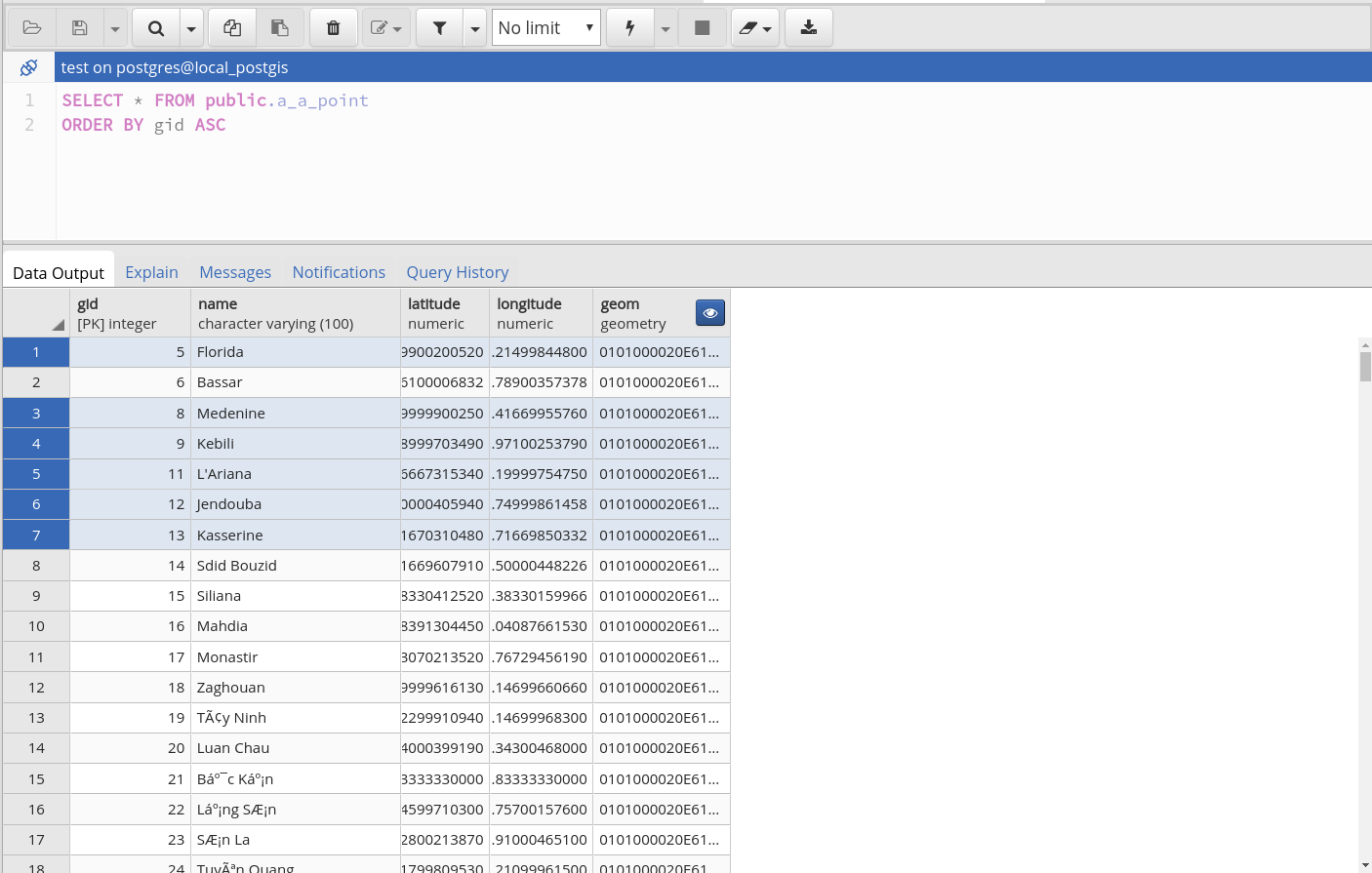

• Add cell button and column header button in datagrid for geometry and geography type data. [screenshot 1]

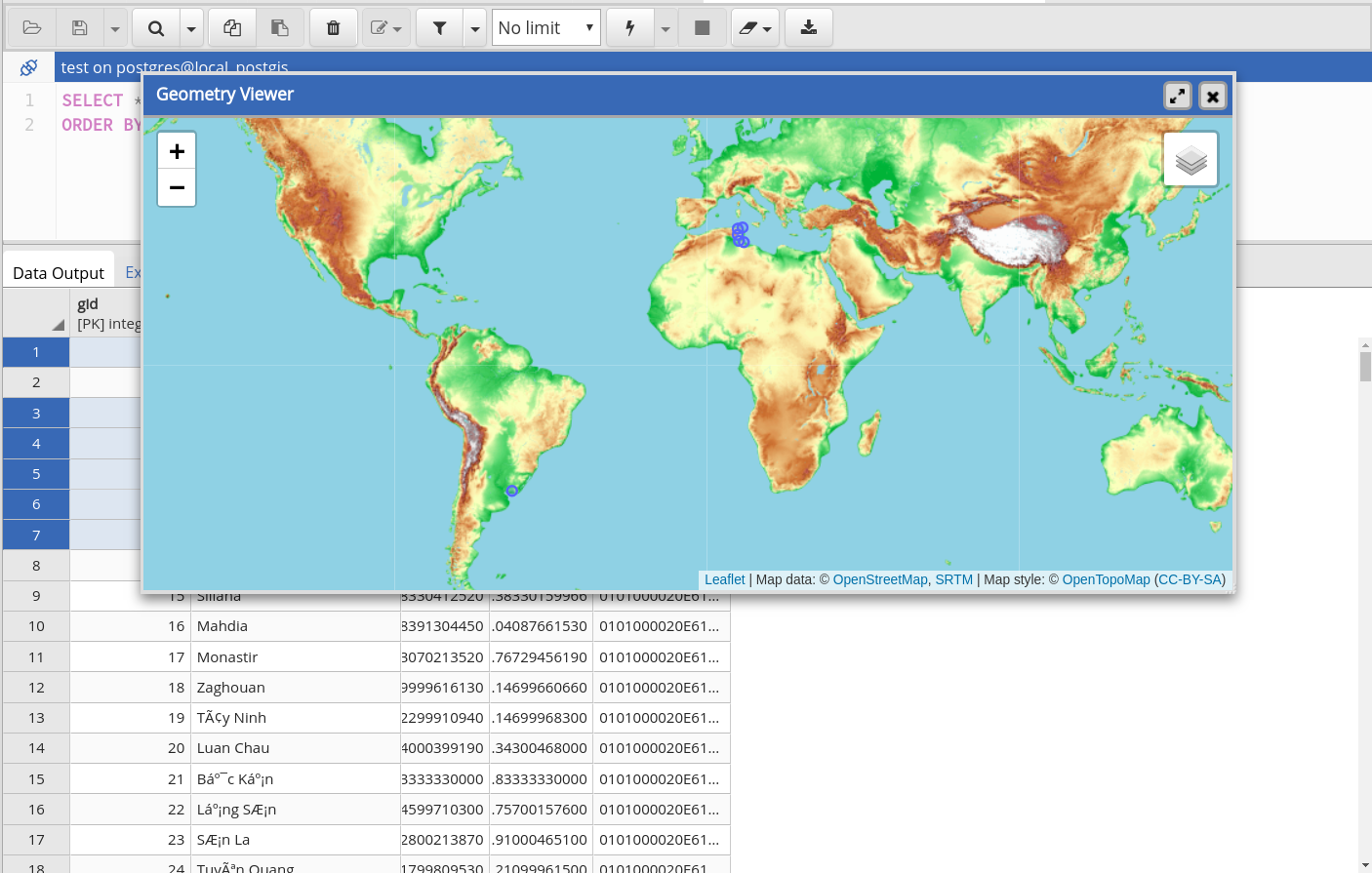

• When user clicks the 'view' button, it parses the data and opens a map to show the geometry. [screenshot 2, 3, 4]

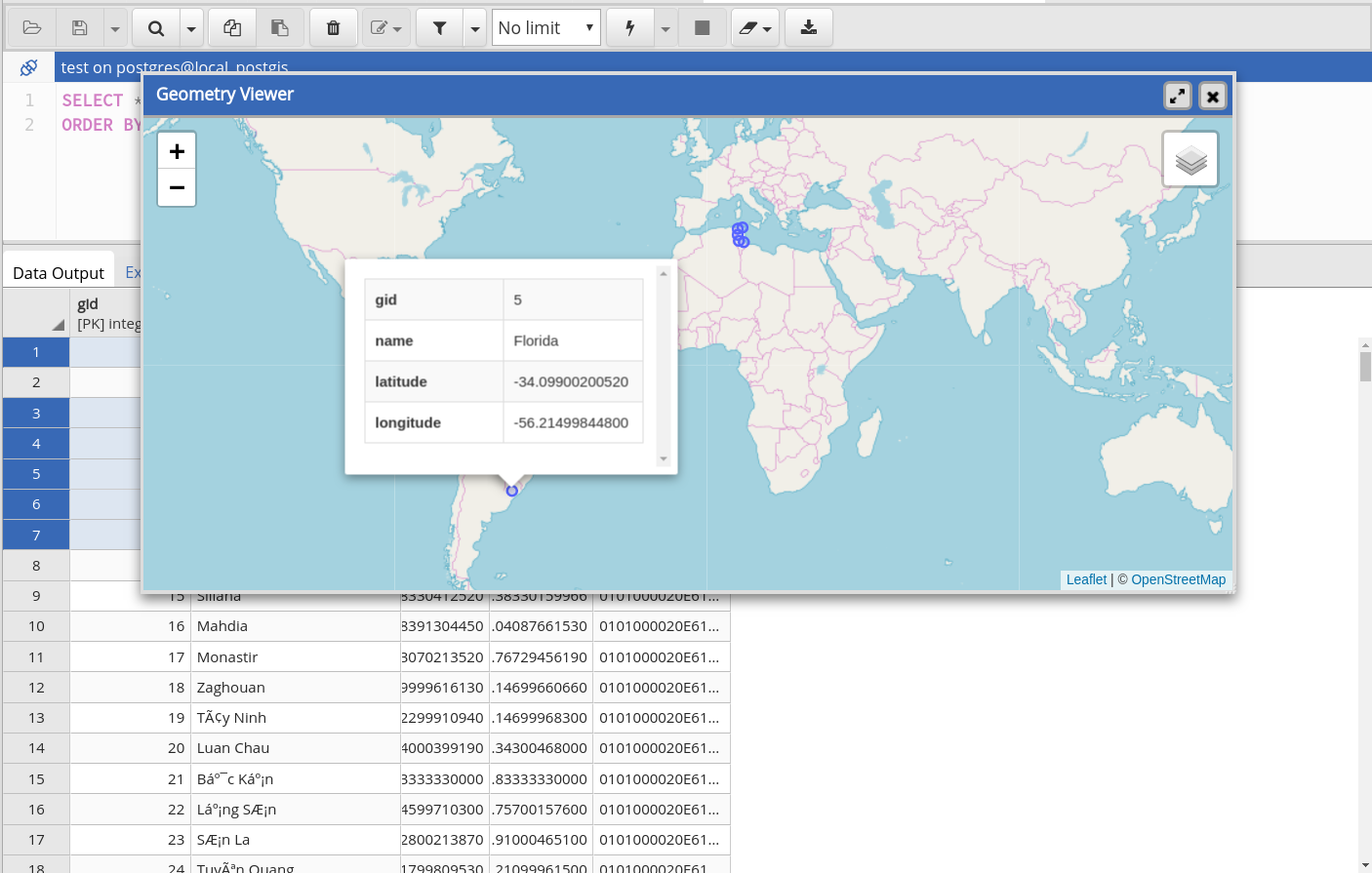

• When user clicks the geometry in the map, it shows the properties. [screenshot 5]

I have created unit test for this. I have also created a test database[1] including geometries of different types to run test manually. Please review it. Thank you.

Regards,

Xuri Gong

[1] https://drive.google.com/open?id=1NHWW4WPli7kxpuGaDFGVFLDXdc2D20wp

--
