Hi Murtuza
On Tue, Mar 22, 2016 at 9:22 AM, Dave Page <dpage@pgadmin.org> wrote:
> Hi
>
> On Tue, Mar 22, 2016 at 8:14 AM, Murtuza Zabuawala
> <murtuza.zabuawala@enterprisedb.com> wrote:
>> Hi Dave,
>>
>> We can create new external type using below method, By running all of below
>> queries at the same time , we can not create separate external type by only
>> using create type statement.
>>
>> So as per my discussion with Ashesh, We should not allow user to create
>> external type in pgAdmin4 but only show definition in edit mode.
>
> Hmm, would it not make sense to allow the user to create the shell
> type as well (perhaps, with a new type of "SHELL")? Then they could do
> what is needed (and that should be easy, as it's just CREATE TYPE
> foo;)
>
> For example:
>
> CREATE TYPE box;
>
> CREATE FUNCTION my_box_in_function(cstring) RETURNS box AS ... ;
> CREATE FUNCTION my_box_out_function(box) RETURNS cstring AS ... ;
>
> CREATE TYPE box (
> INTERNALLENGTH = 16,
> INPUT = my_box_in_function,
> OUTPUT = my_box_out_function
> );
>
> CREATE TABLE myboxes (
> id integer,
> description box
> );
In the interests of making progress, I've committed the most recent
patch, with a number of minor changes most significantly, the Postgres
docs and system catalogs seem to have different ideas about what to
call length, precision and scale. pgAdmin 3 followed the catalogs and
used length and precision, however I've updated pgAdmin 4 to use
"Length/precision" and "Scale" which is inline with the Postgres docs.
That's only in the UI though - the code follows the catalogs.
There are still a couple of issues - please provide fixes ASAP:
1) If you create a composite type that contains a sized type (e.g.
numeric(5, 4), the precision and scale are not shown if you later open
the properties dialogue, or in the reverse engineered SQL.
E.g. what pgAdmin3 shows as:
CREATE TYPE pem.blergh AS
(c1 text COLLATE pg_catalog."C",
c2 numeric(5));
Is shown by pgAdmin4 as:
CREATE TYPE pem.blergh AS
(c1 text COLLATE pg_catalog."C", c2 numeric);
(adding the \n's would be good too).

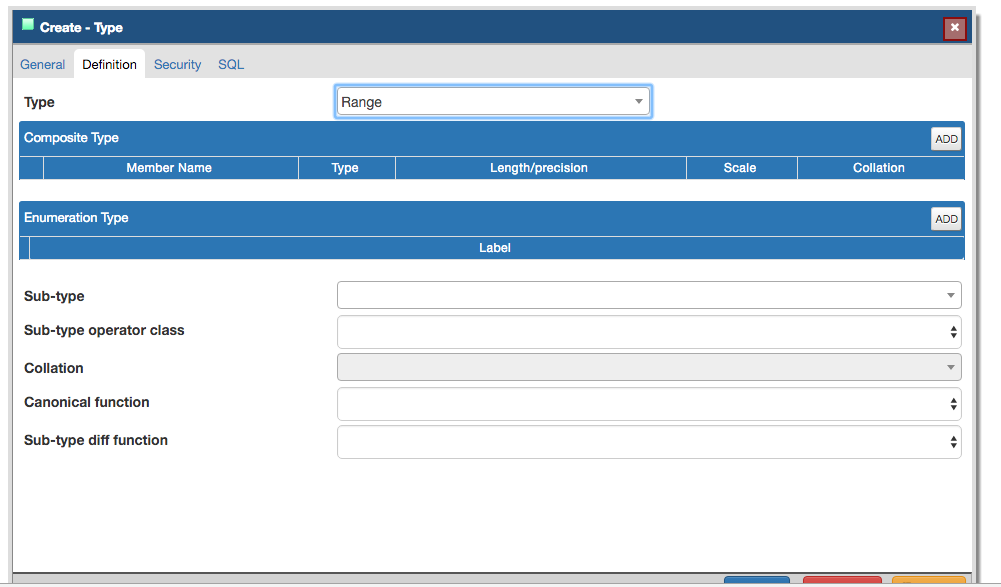

2) If you select a different type of type in create mode, the new
options are shown below those for the previously selected type,
instead of replacing them. Please see the attached screenshot.
3) I would still like us to support External types. I believe the
simple option here is to re-add the code you had previously, and to
add a new type of type called "SHELL" as discussed in my previous
email above. The user would then be able to create a SHELL type, add
the required functions, then come back and create the EXTERNAL type.
I'll add cards to our internal kanban chart for these issues.
Thanks.
--
