Re: [HACKERS] Proposal for CSN based snapshots

El 08/12/17 a las 14:59, Alexander Korotkov escribió:

These results look promising for me.  Could you try benchmarking using more workloads including read-only and mixed mostly-read workloads?

You can try same benchmarks I used in my talk about CSN in pgconf.eu [1] slides 19-25 (and you're welcome to invent more benchmakrs yourself)

Sure, here are some more benchmarks.

I've already had measured the "skip some updates" and "select-only" pgbench variants, and also a simple "select 1" query. These are for scale 1500 and for 20 to 1000 connections. The graphs are attached.

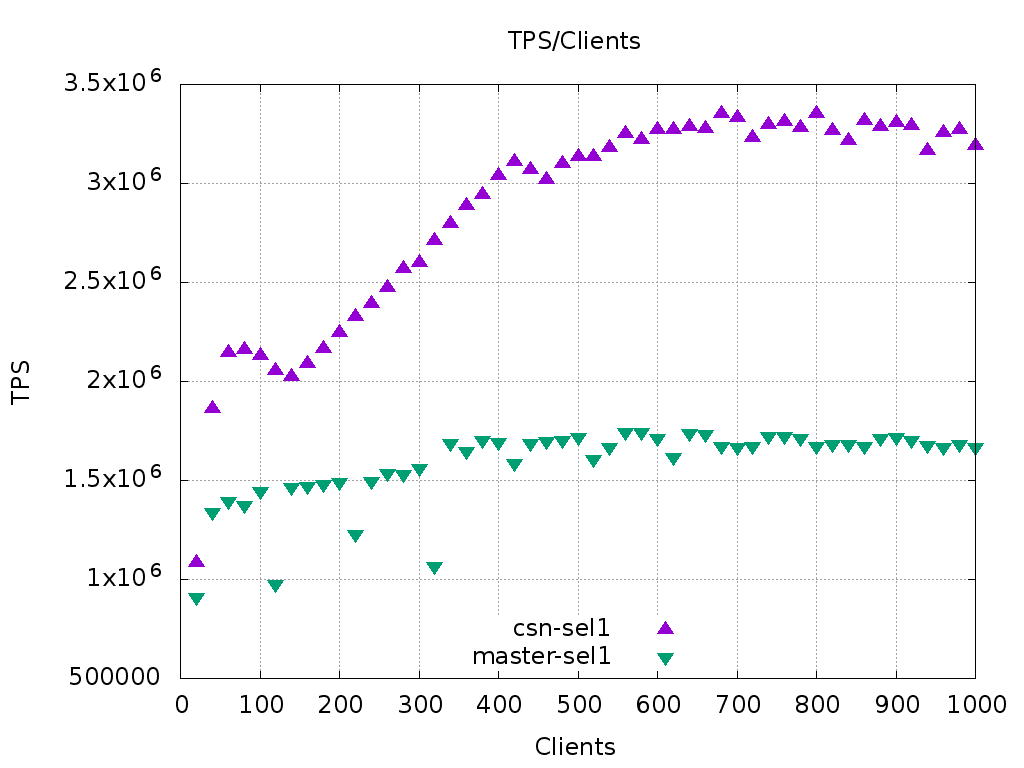

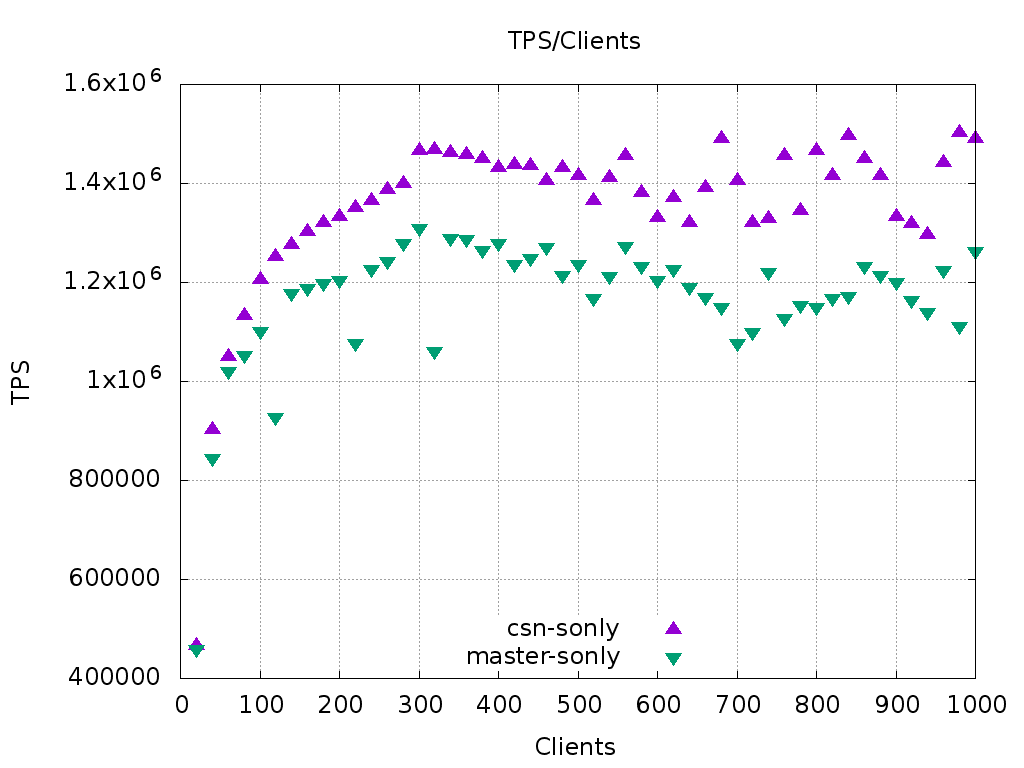

"select 1", which basically benchmarks snapshot taking, shows an impressive twofold increase in TPS over master, but this is to be expected. "select-only" stabilizes at 20% higher than master. Interesting to note is that these select-only scenarios almost do not degrade with growing client count.

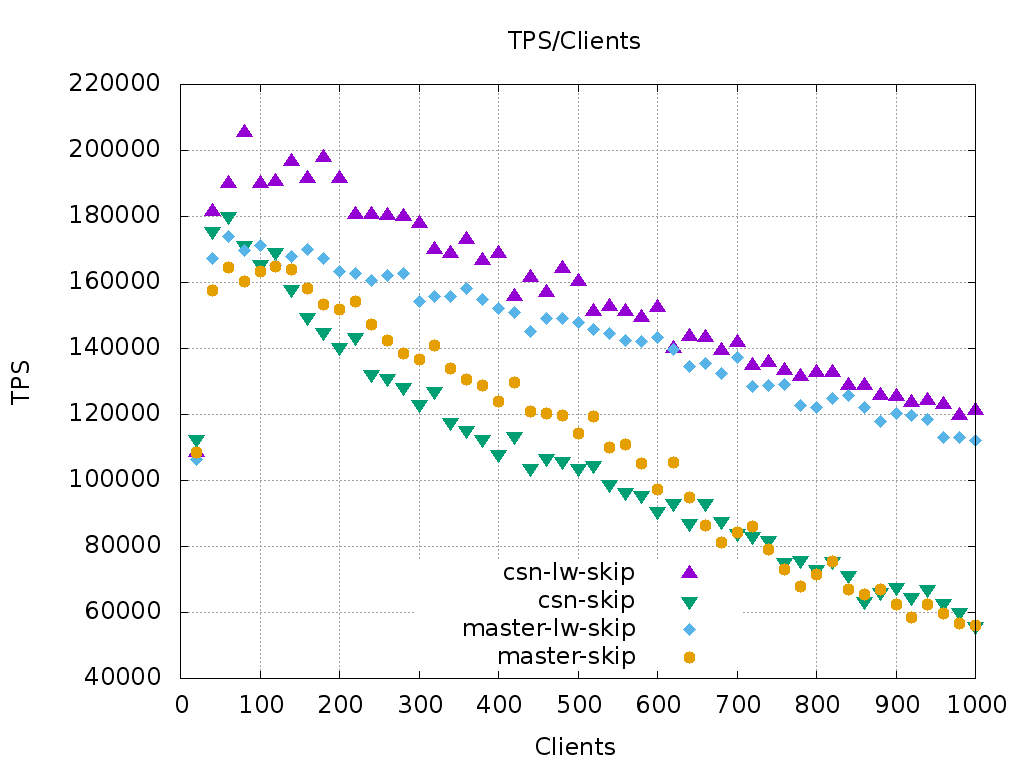

For the "skip some updates" scenario, CSN is slightly slower than master, but this is improved by the LWLock patch I mentioned upthread.

I also replicated the setup from your slides 23 and 25. I used scale 500 and client counts 20-300, and probably the same 72-core Xeon.

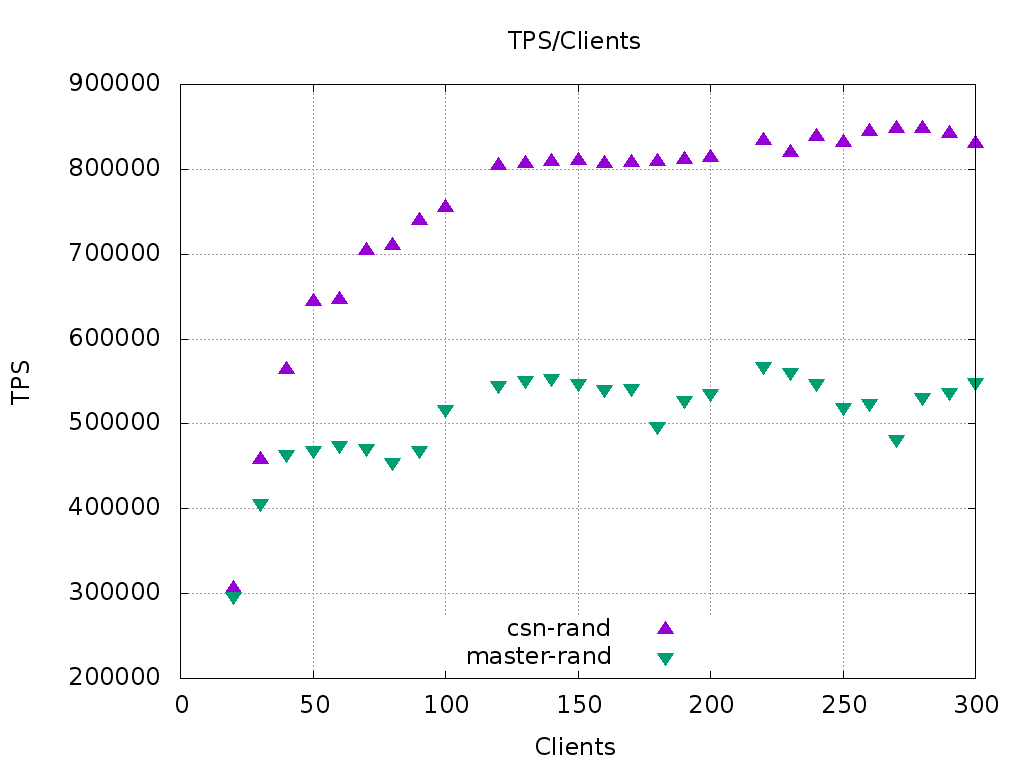

Slide 23 shows 22% write and 78% read queries, that is "-b select-only@9 -b tpcb-like@1". The corresponding picture is called "random.png". The absolute numbers are somewhat lower for my run, but CSN is about 40% faster than master, like the CSN-rewrite variant.

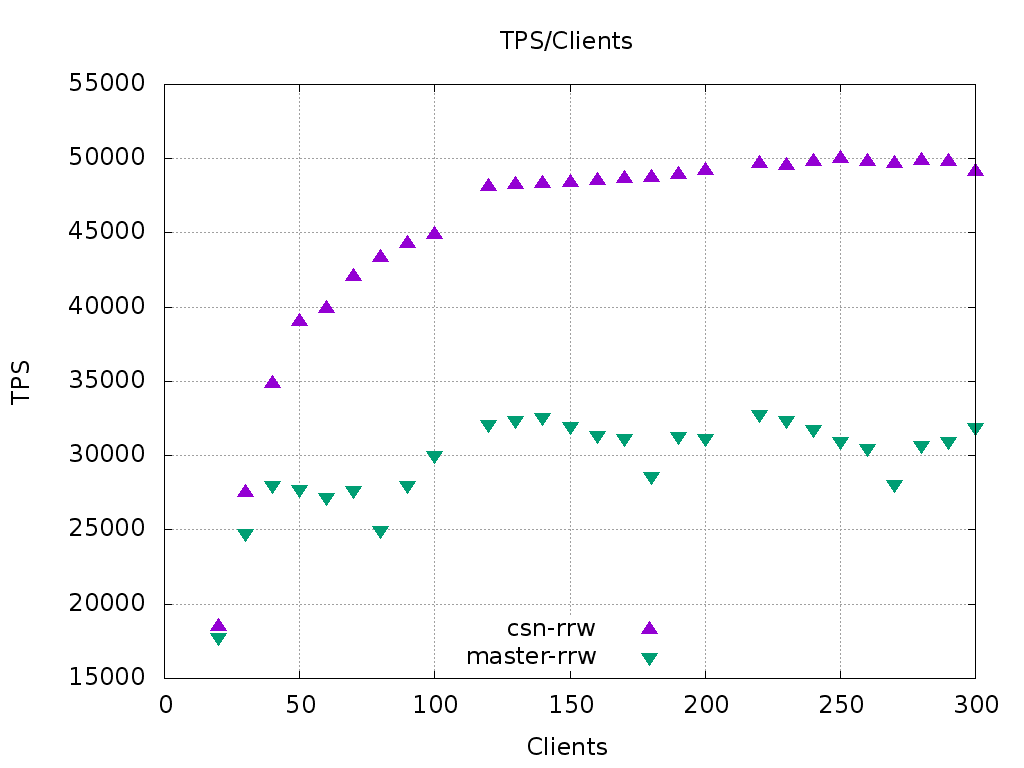

Slide 25 is a custom script called "rrw" with extra 20 read queries. We can see that since your run the master has improved much, and the current CSN shows the same general behaviour as CSN-rewrite, although being slower in absolute numbers.

Also, I wonder how current version of CSN patch behaves in worst case when we have to scan the table with a lot of unique xid (and correspondingly have to do a lot of csnlog lookups)?  See [1] slide 18.  This worst case was significant part of my motivation to try "rewrite xid with csn" approach.  Please, find simple extension I used to fill table with random xmins in the attachment.

OK, let's summarize how the worst case in question works. It happens when the tuples have a wide range of xmins and no hint bits. All visibility checks have to go to clog then. Fortunately, on master we also set hint bits during these checks, and the subsequent scans can determine visibility using just the hint bits and the current snapshot. This makes the subsequent scans run much faster. With CSN, this is not enough, and the visibility checks always go to CSN log for all the transactions newer than global xmin. This can become very slow if there is a long-running transaction that holds back the global xmin.

I made a simple test to see these effects. The procedure is as follows. I start a transaction in psql; that will be our long-running transaction. Next, I run pgbench for a minute, and randomize the tuple xmins in "pgbench_accounts" using your extension. Then I run "select sum(abalance) from pgbench_accounts" twice, and record the durations.
Here is a table with the results (50M tuples, 1M transactions for master and 400k for CSN):

Branch    scan 1, s   scan 2, s
--------------------------------
CSN          80          80
master       13          3.5

So, we are indeed seeing the expected results. Significant slowdown with long-running transaction is an important problem for this patch. Even the first scan is much slower, because a CSN log page contains 16 times less transactions than a clog page, and we have the same number of buffers (max 128) for them. When the range of xids is wide, we spend most of the time loading and unloading the pages. I believe it can be improved by using more buffers for CSN log. I did some work in this direction, namely, made SLRUs use a dynahash table instead of linear search for page->buffer lookups. This is included in the v8 I posted earlier, but it should probably be done as a separate patch.

--
Alexander Kuzmenkov
Postgres Professional: http://www.postgrespro.com
The Russian Postgres Company
