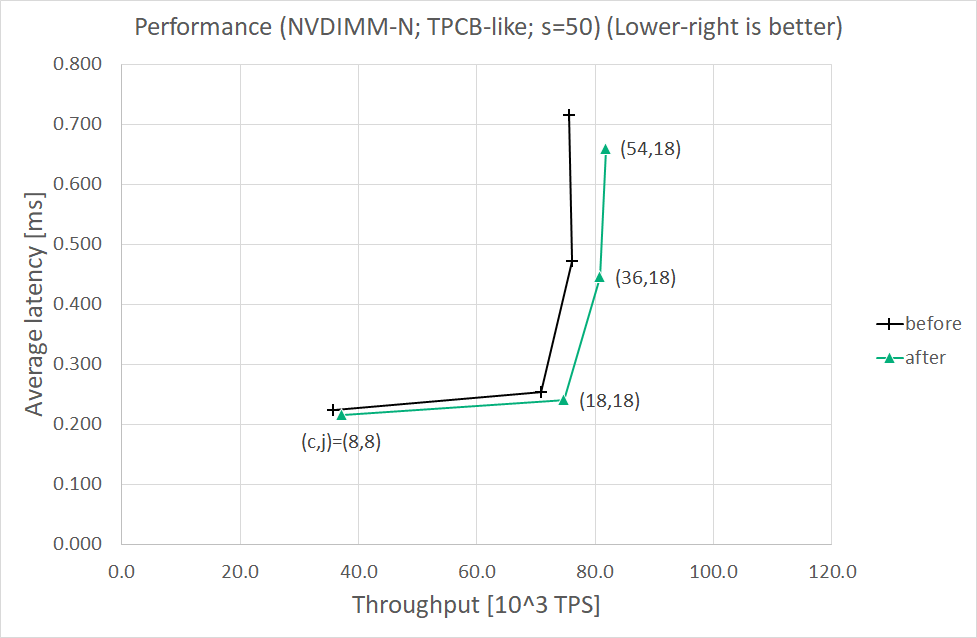

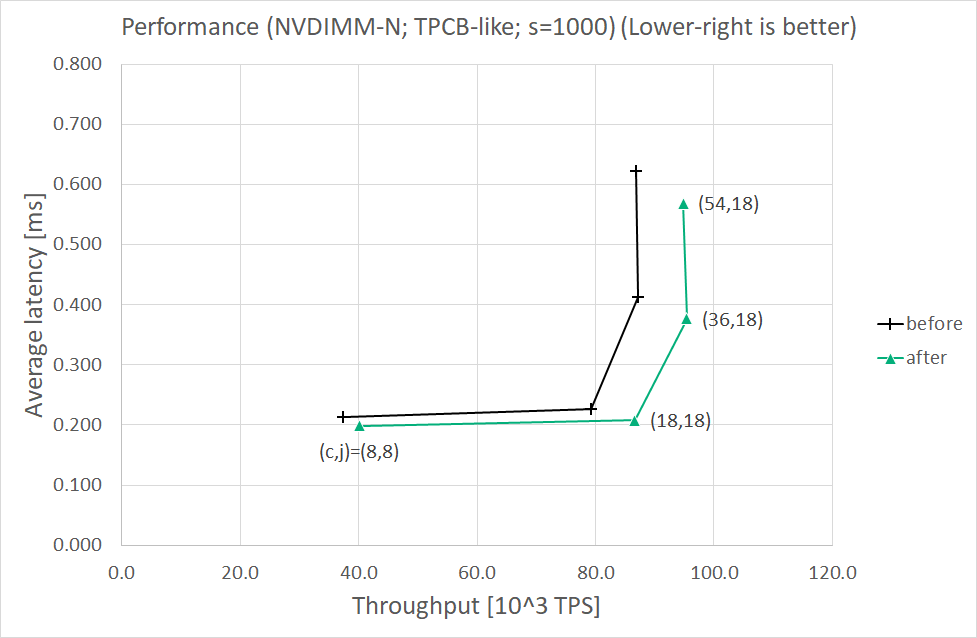

Dear hackers, I rebased my non-volatile WAL buffer's patchset onto master. A new v2 patchset is attached to this mail. I also measured performance before and after patchset, varying -c/--client and -j/--jobs options of pgbench, for each scalingfactor s = 50 or 1000. The results are presented in the following tables and the attached charts. Conditions, steps,and other details will be shown later. Results (s=50) ============== Throughput [10^3 TPS] Average latency [ms] ( c, j) before after before after ------- --------------------- --------------------- ( 8, 8) 35.7 37.1 (+3.9%) 0.224 0.216 (-3.6%) (18,18) 70.9 74.7 (+5.3%) 0.254 0.241 (-5.1%) (36,18) 76.0 80.8 (+6.3%) 0.473 0.446 (-5.7%) (54,18) 75.5 81.8 (+8.3%) 0.715 0.660 (-7.7%) Results (s=1000) ================ Throughput [10^3 TPS] Average latency [ms] ( c, j) before after before after ------- --------------------- --------------------- ( 8, 8) 37.4 40.1 (+7.3%) 0.214 0.199 (-7.0%) (18,18) 79.3 86.7 (+9.3%) 0.227 0.208 (-8.4%) (36,18) 87.2 95.5 (+9.5%) 0.413 0.377 (-8.7%) (54,18) 86.8 94.8 (+9.3%) 0.622 0.569 (-8.5%) Both throughput and average latency are improved for each scaling factor. Throughput seemed to almost reach the upper limitwhen (c,j)=(36,18). The percentage in s=1000 case looks larger than in s=50 case. I think larger scaling factor leads to less contentions onthe same tables and/or indexes, that is, less lock and unlock operations. In such a situation, write-ahead logging appearsto be more significant for performance. Conditions ========== - Use one physical server having 2 NUMA nodes (node 0 and 1) - Pin postgres (server processes) to node 0 and pgbench to node 1 - 18 cores and 192GiB DRAM per node - Use an NVMe SSD for PGDATA and an interleaved 6-in-1 NVDIMM-N set for pg_wal - Both are installed on the server-side node, that is, node 0 - Both are formatted with ext4 - NVDIMM-N is mounted with "-o dax" option to enable Direct Access (DAX) - Use the attached postgresql.conf - Two new items nvwal_path and nvwal_size are used only after patch Steps ===== For each (c,j) pair, I did the following steps three times then I found the median of the three as a final result shown inthe tables above. (1) Run initdb with proper -D and -X options; and also give --nvwal-path and --nvwal-size options after patch (2) Start postgres and create a database for pgbench tables (3) Run "pgbench -i -s ___" to create tables (s = 50 or 1000) (4) Stop postgres, remount filesystems, and start postgres again (5) Execute pg_prewarm extension for all the four pgbench tables (6) Run pgbench during 30 minutes pgbench command line ==================== $ pgbench -h /tmp -p 5432 -U username -r -M prepared -T 1800 -c ___ -j ___ dbname I gave no -b option to use the built-in "TPC-B (sort-of)" query. Software ======== - Distro: Ubuntu 18.04 - Kernel: Linux 5.4 (vanilla kernel) - C Compiler: gcc 7.4.0 - PMDK: 1.7 - PostgreSQL: d677550 (master on Mar 3, 2020) Hardware ======== - System: HPE ProLiant DL380 Gen10 - CPU: Intel Xeon Gold 6154 (Skylake) x 2sockets - DRAM: DDR4 2666MHz {32GiB/ch x 6ch}/socket x 2sockets - NVDIMM-N: DDR4 2666MHz {16GiB/ch x 6ch}/socket x 2sockets - NVMe SSD: Intel Optane DC P4800X Series SSDPED1K750GA Best regards, Takashi -- Takashi Menjo <takashi.menjou.vg@hco.ntt.co.jp> NTT Software Innovation Center > -----Original Message----- > From: Takashi Menjo <takashi.menjou.vg@hco.ntt.co.jp> > Sent: Thursday, February 20, 2020 6:30 PM > To: 'Amit Langote' <amitlangote09@gmail.com> > Cc: 'Robert Haas' <robertmhaas@gmail.com>; 'Heikki Linnakangas' <hlinnaka@iki.fi>; 'PostgreSQL-development' > <pgsql-hackers@postgresql.org> > Subject: RE: [PoC] Non-volatile WAL buffer > > Dear Amit, > > Thank you for your advice. Exactly, it's so to speak "do as the hackers do when in pgsql"... > > I'm rebasing my branch onto master. I'll submit an updated patchset and performance report later. > > Best regards, > Takashi > > -- > Takashi Menjo <takashi.menjou.vg@hco.ntt.co.jp> NTT Software Innovation Center > > > -----Original Message----- > > From: Amit Langote <amitlangote09@gmail.com> > > Sent: Monday, February 17, 2020 5:21 PM > > To: Takashi Menjo <takashi.menjou.vg@hco.ntt.co.jp> > > Cc: Robert Haas <robertmhaas@gmail.com>; Heikki Linnakangas > > <hlinnaka@iki.fi>; PostgreSQL-development > > <pgsql-hackers@postgresql.org> > > Subject: Re: [PoC] Non-volatile WAL buffer > > > > Hello, > > > > On Mon, Feb 17, 2020 at 4:16 PM Takashi Menjo <takashi.menjou.vg@hco.ntt.co.jp> wrote: > > > Hello Amit, > > > > > > > I apologize for not having any opinion on the patches themselves, > > > > but let me point out that it's better to base these patches on > > > > HEAD (master branch) than REL_12_0, because all new code is > > > > committed to the master branch, whereas stable branches such as > > > > REL_12_0 only receive bug fixes. Do you have any > > specific reason to be working on REL_12_0? > > > > > > Yes, because I think it's human-friendly to reproduce and discuss > > > performance measurement. Of course I know > > all new accepted patches are merged into master's HEAD, not stable > > branches and not even release tags, so I'm aware of rebasing my > > patchset onto master sooner or later. However, if someone, including > > me, says that s/he applies my patchset to "master" and measures its > > performance, we have to pay attention to which commit the "master" > > really points to. Although we have sha1 hashes to specify which > > commit, we should check whether the specific commit on master has patches affecting performance or not > because master's HEAD gets new patches day by day. On the other hand, a release tag clearly points the commit > all we probably know. Also we can check more easily the features and improvements by using release notes and > user manuals. > > > > Thanks for clarifying. I see where you're coming from. > > > > While I do sometimes see people reporting numbers with the latest > > stable release' branch, that's normally just one of the baselines. > > The more important baseline for ongoing development is the master > > branch's HEAD, which is also what people volunteering to test your > > patches would use. Anyone who reports would have to give at least two > > numbers -- performance with a branch's HEAD without patch applied and > > that with patch applied -- which can be enough in most cases to see > > the difference the patch makes. Sure, the numbers might change on > > each report, but that's fine I'd think. If you continue to develop against the stable branch, you might miss to > notice impact from any relevant developments in the master branch, even developments which possibly require > rethinking the architecture of your own changes, although maybe that rarely occurs. > > > > Thanks, > > Amit
