RE: [PoC] Non-volatile WAL buffer
От | Takashi Menjo |
---|---|
Тема | RE: [PoC] Non-volatile WAL buffer |
Дата | |
Msg-id | 000c01d5fdb5$2f9db430$8ed91c90$@hco.ntt.co.jp_1 обсуждение исходный текст |
Ответ на | Re: [PoC] Non-volatile WAL buffer (Andres Freund <andres@anarazel.de>) |
Список | pgsql-hackers |
Dear Andres, Thank you for your advice about MAP_POPULATE flag. I rebased my msync patchset onto master and added a commit to appendthat flag when mmap. A new v2 patchset is attached to this mail. Note that this patchset is NOT non-volatile WAL buffer's one. I also measured performance of the following three versions, varying -c/--client and -j/--jobs options of pgbench, for eachscaling factor s = 50 or 1000. - Before patchset (say "before") - After patchset except patch 0005 not to use MAP_POPULATE ("after (no populate)") - After full patchset to use MAP_POPULATE ("after (populate)") The results are presented in the following tables and the attached charts. Conditions, steps, and other details will beshown later. Note that, unlike the measurement of non-volatile WAL buffer I sent recently [1], I used an NVMe SSD for pg_wal toevaluate this patchset with traditional mmap-ed files, that is, direct access (DAX) is not supported and there are page caches. Results (s=50) ============== Throughput [10^3 TPS] ( c, j) before after after (no populate) (populate) ------- ------------------------------------- ( 8, 8) 30.9 28.1 (- 9.2%) 28.3 (- 8.6%) (18,18) 61.5 46.1 (-25.0%) 47.7 (-22.3%) (36,18) 67.0 45.9 (-31.5%) 48.4 (-27.8%) (54,18) 68.3 47.0 (-31.3%) 49.6 (-27.5%) Average Latency [ms] ( c, j) before after after (no populate) (populate) ------- -------------------------------------- ( 8, 8) 0.259 0.285 (+10.0%) 0.283 (+ 9.3%) (18,18) 0.293 0.391 (+33.4%) 0.377 (+28.7%) (36,18) 0.537 0.784 (+46.0%) 0.744 (+38.5%) (54,18) 0.790 1.149 (+45.4%) 1.090 (+38.0%) Results (s=1000) ================ Throghput [10^3 TPS] ( c, j) before after after (no populate) (populate) ------- ------------------------------------ ( 8, 8) 32.0 29.6 (- 7.6%) 29.1 (- 9.0%) (18,18) 66.1 49.2 (-25.6%) 50.4 (-23.7%) (36,18) 76.4 51.0 (-33.3%) 53.4 (-30.1%) (54,18) 80.1 54.3 (-32.2%) 57.2 (-28.6%) Average latency [10^3 TPS] ( c, j) before after after (no populate) (populate) ------- -------------------------------------- ( 8, 8) 0.250 0.271 (+ 8.4%) 0.275 (+10.0%) (18,18) 0.272 0.366 (+34.6%) 0.357 (+31.3%) (36,18) 0.471 0.706 (+49.9%) 0.674 (+43.1%) (54,18) 0.674 0.995 (+47.6%) 0.944 (+40.1%) I'd say MAP_POPULATE made performance a little better in large #clients cases, comparing "populate" with "no populate". However, comparing "after" with "before", I found both throughput and average latency degraded. VTune told me that "after (populate)"still spent larger CPU time for memcpy-ing WAL records into mmap-ed segments than "before". I also made a microbenchmark to see the behavior of mmap and msync. I found that: - A major fault occured at mmap with MAP_POPULATE, instead at first access to the mmap-ed space. - Some minor faults also occured at mmap with MAP_POPULATE, and no additional fault occured when I loaded from the mmap-edspace. But once I stored to that space, a minor fault occured. - When I stored to the page that had been msync-ed, a minor fault occurred. So I think one of the remaining causes of performance degrade is minor faults when mmap-ed pages get dirtied. And it seemsnot to be solved by MAP_POPULATE only, as far as I see. Conditions ========== - Use one physical server having 2 NUMA nodes (node 0 and 1) - Pin postgres (server processes) to node 0 and pgbench to node 1 - 18 cores and 192GiB DRAM per node - Use two NVMe SSDs; one for PGDATA, another for pg_wal - Both are installed on the server-side node, that is, node 0 - Both are formatted with ext4 - Use the attached postgresql.conf Steps ===== For each (c,j) pair, I did the following steps three times then I found the median of the three as a final result shown inthe tables above. (1) Run initdb with proper -D and -X options (2) Start postgres and create a database for pgbench tables (3) Run "pgbench -i -s ___" to create tables (s = 50 or 1000) (4) Stop postgres, remount filesystems, and start postgres again (5) Execute pg_prewarm extension for all the four pgbench tables (6) Run pgbench during 30 minutes pgbench command line ==================== $ pgbench -h /tmp -p 5432 -U username -r -M prepared -T 1800 -c ___ -j ___ dbname I gave no -b option to use the built-in "TPC-B (sort-of)" query. Software ======== - Distro: Ubuntu 18.04 - Kernel: Linux 5.4 (vanilla kernel) - C Compiler: gcc 7.4.0 - PMDK: 1.7 - PostgreSQL: d677550 (master on Mar 3, 2020) Hardware ======== - System: HPE ProLiant DL380 Gen10 - CPU: Intel Xeon Gold 6154 (Skylake) x 2sockets - DRAM: DDR4 2666MHz {32GiB/ch x 6ch}/socket x 2sockets - NVMe SSD: Intel Optane DC P4800X Series SSDPED1K750GA x2 Best regards, Takashi [1] https://www.postgresql.org/message-id/002701d5fd03$6e1d97a0$4a58c6e0$@hco.ntt.co.jp_1 -- Takashi Menjo <takashi.menjou.vg@hco.ntt.co.jp> NTT Software Innovation Center > -----Original Message----- > From: Andres Freund <andres@anarazel.de> > Sent: Thursday, February 20, 2020 2:04 PM > To: Takashi Menjo <takashi.menjou.vg@hco.ntt.co.jp> > Cc: 'Robert Haas' <robertmhaas@gmail.com>; 'Heikki Linnakangas' <hlinnaka@iki.fi>; > pgsql-hackers@postgresql.org > Subject: Re: [PoC] Non-volatile WAL buffer > > Hi, > > On 2020-02-17 13:12:37 +0900, Takashi Menjo wrote: > > I applied my patchset that mmap()-s WAL segments as WAL buffers to > > refs/tags/REL_12_0, and measured and analyzed its performance with > > pgbench. Roughly speaking, When I used *SSD and ext4* to store WAL, > > it was "obviously worse" than the original REL_12_0. VTune told me > > that the CPU time of memcpy() called by CopyXLogRecordToWAL() got > > larger than before. > > FWIW, this might largely be because of page faults. In contrast to before we wouldn't reuse the same pages > (because they've been munmap()/mmap()ed), so the first time they're touched, we'll incur page faults. Did you > try mmap()ing with MAP_POPULATE? It's probably also worthwhile to try to use MAP_HUGETLB. > > Still doubtful it's the right direction, but I'd rather have good numbers to back me up :) > > Greetings, > > Andres Freund
Вложения
- v2-0001-Preallocate-more-WAL-segments.patch
- v2-0002-Use-WAL-segments-as-WAL-buffers.patch
- v2-0003-Lazy-unmap-WAL-segments.patch
- v2-0004-Speculative-map-WAL-segments.patch
- v2-0005-Map-WAL-segments-with-MAP_POPULATE-if-non-DAX.patch

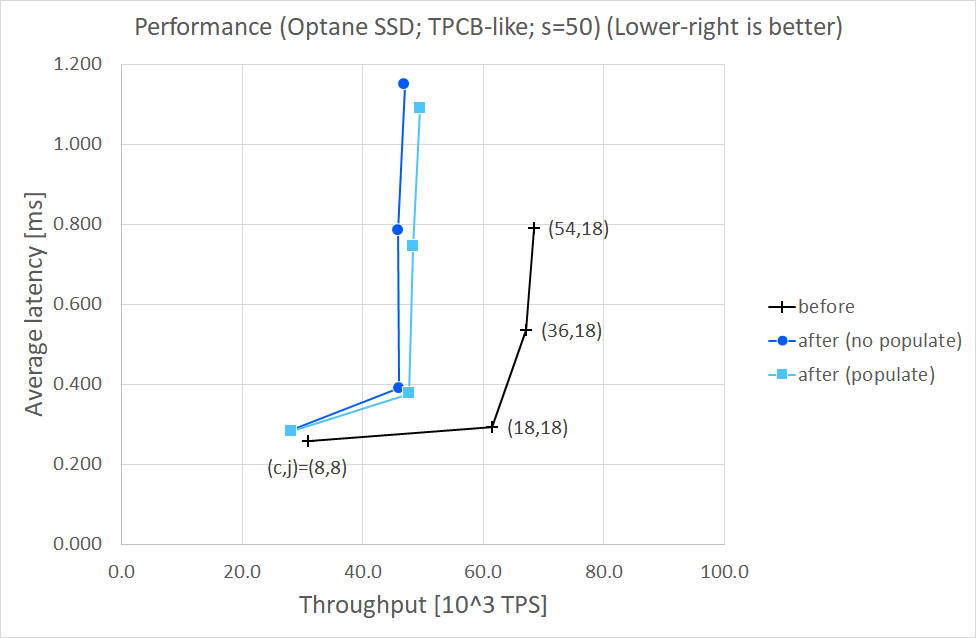

- msync-performance-s50.png

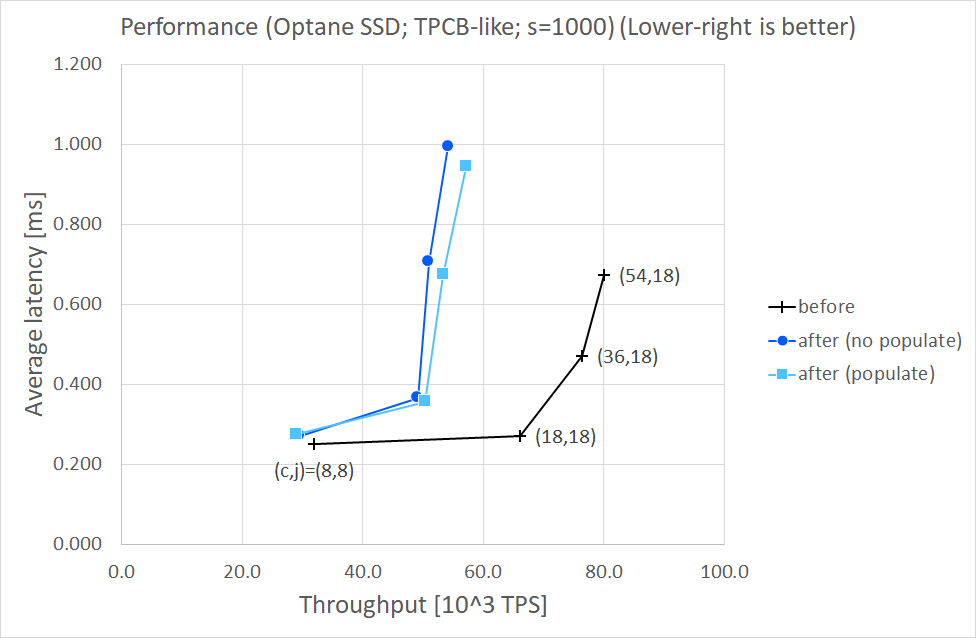

- msync-performance-s1000.png
- postgresql.conf
